Prerequisites
- Before working on this lab, You must have
- A computer running windows server 2022 Operating System Hyper-V host.

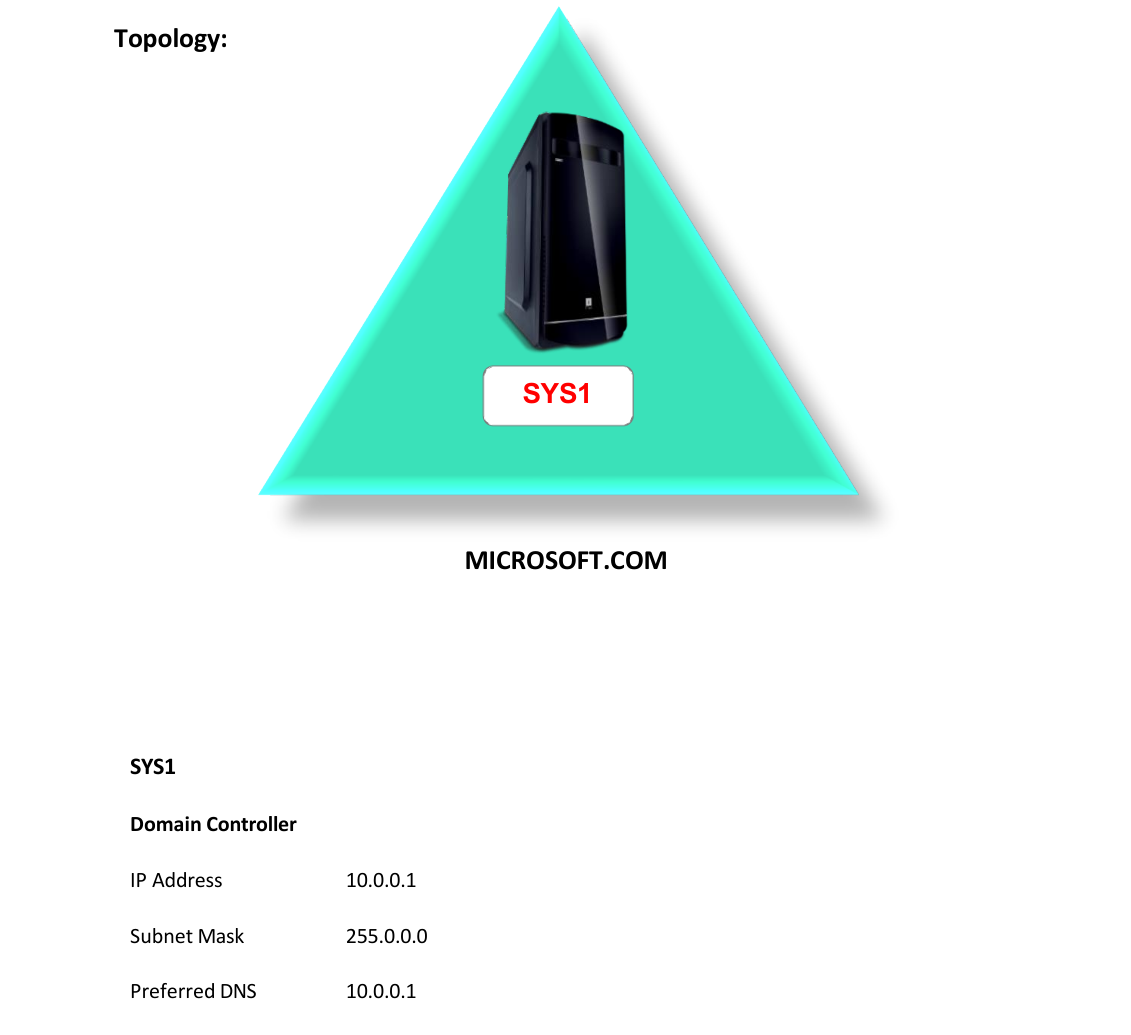

Network Topology
Step-by-Step Instructions
Step 1

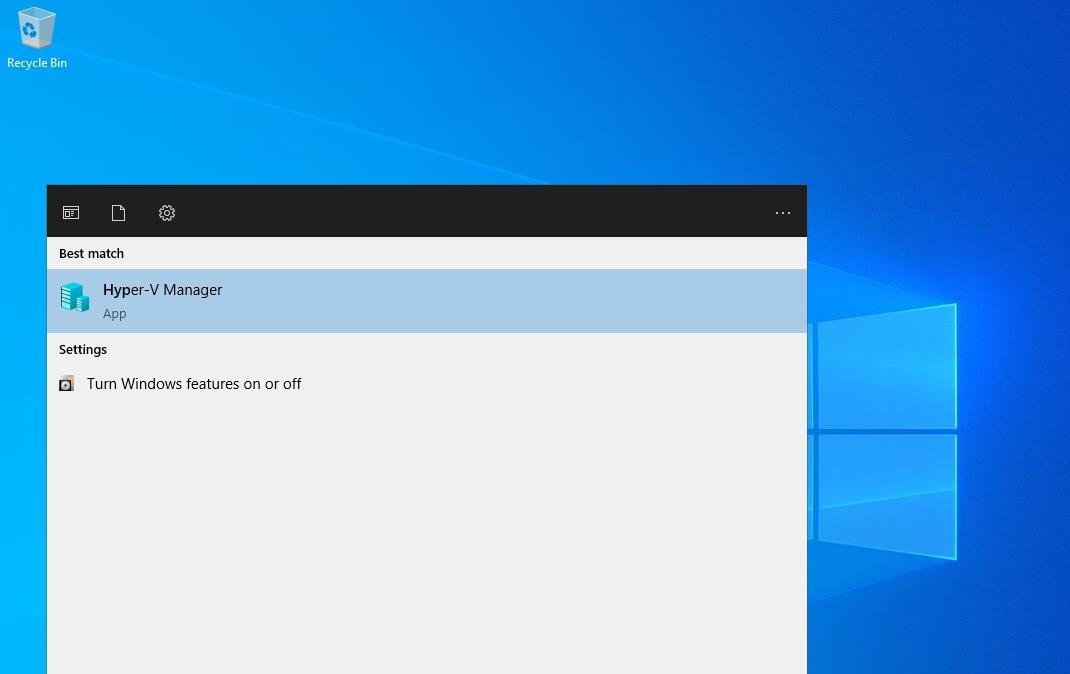

Go to Start, select Hyper-V Manager.

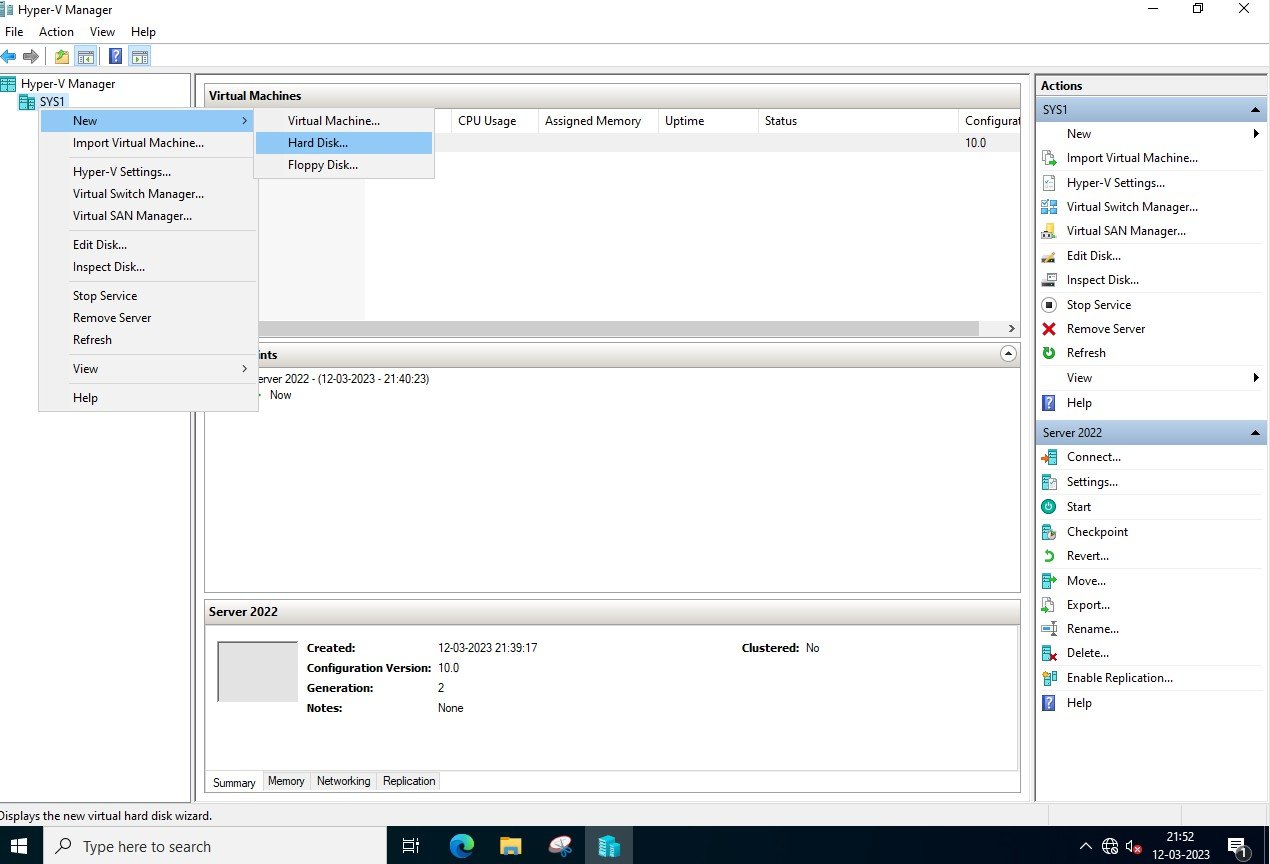

Step 2
In Hyper-V Manager, right click on Server Name (SYS1) and select New Hard Disk.
Step 3

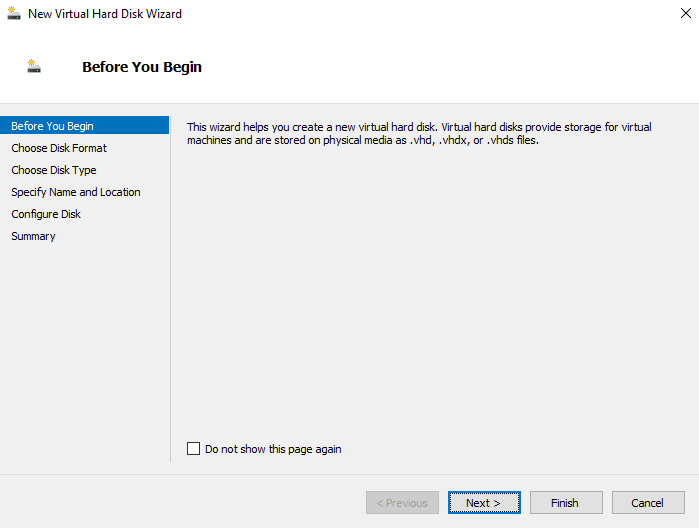

In Before you begin page, click Next.
Step 4

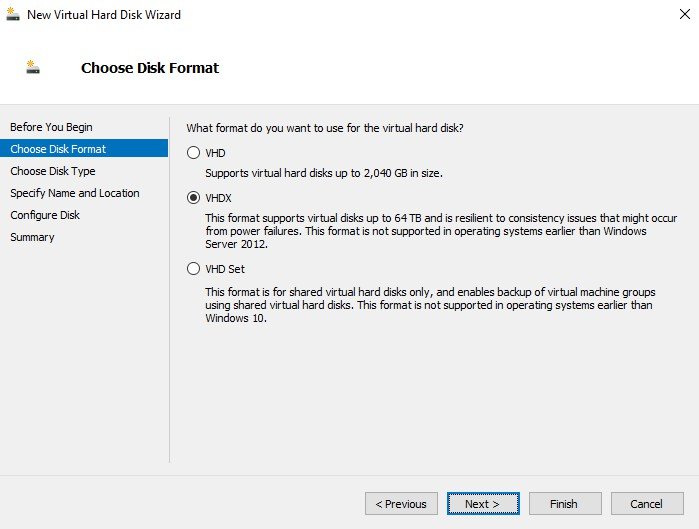

In Choose Disk Format Page, select VHDX and click Next.

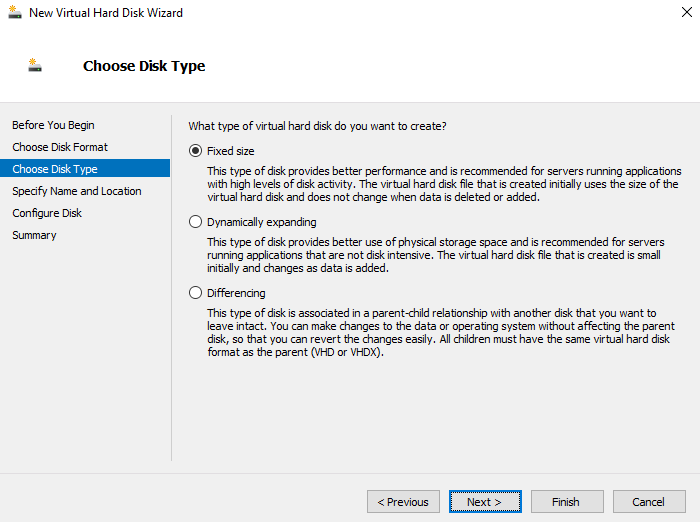

Step 5
In Choose Disk Type, select Fixed size and click Next.
Step 6

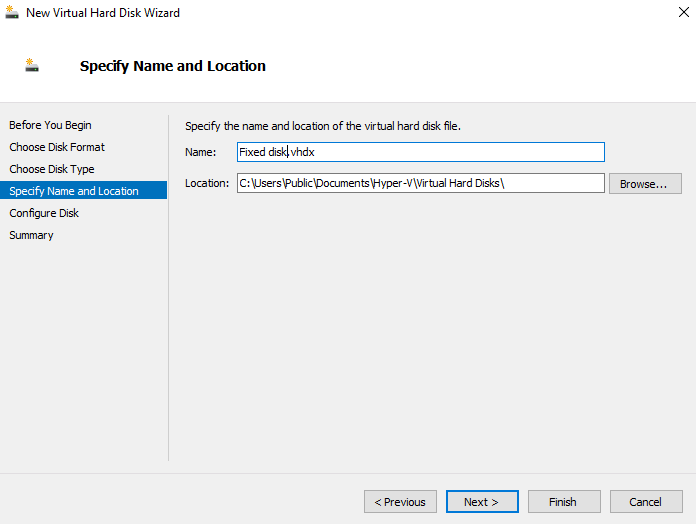

Enter Name, Browse and select Location for virtual hard disk, click Next.
Step 7

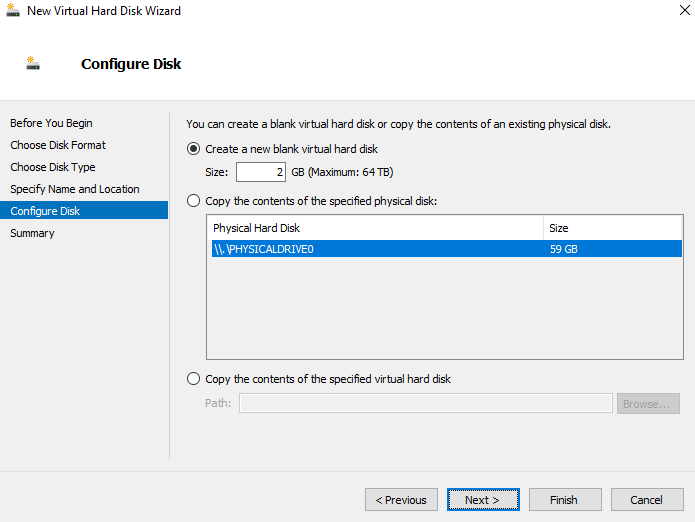

Select Create a new blank virtual hard disk, Size of virtual hard disk. Click Next.
Step 8

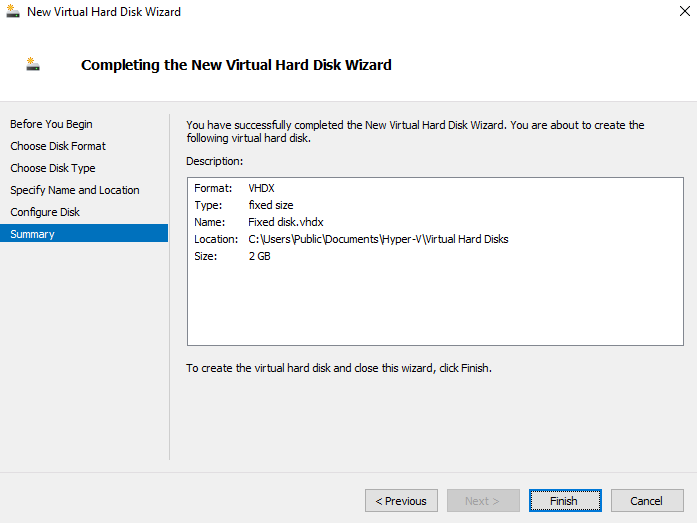

Click Finish to create the New Virtual Hard Disk.
Step 9
It creates a new Fixed size virtual hard disk.
Verification
- 1. Go to the location of the Fixed size virtual hard disk (Ex: E:\Virtual Hard Disks), select
- Fixed Disk.vhdx file à Properties and verify the Size and Size on disk.
