Creating Child Domain
Step by Step

To create child domain.

Prerequisites

  • Before working on this lab, You must have
  • A computer running windows 2022 server Domain Controller.
  • A computer running running windows 2022.

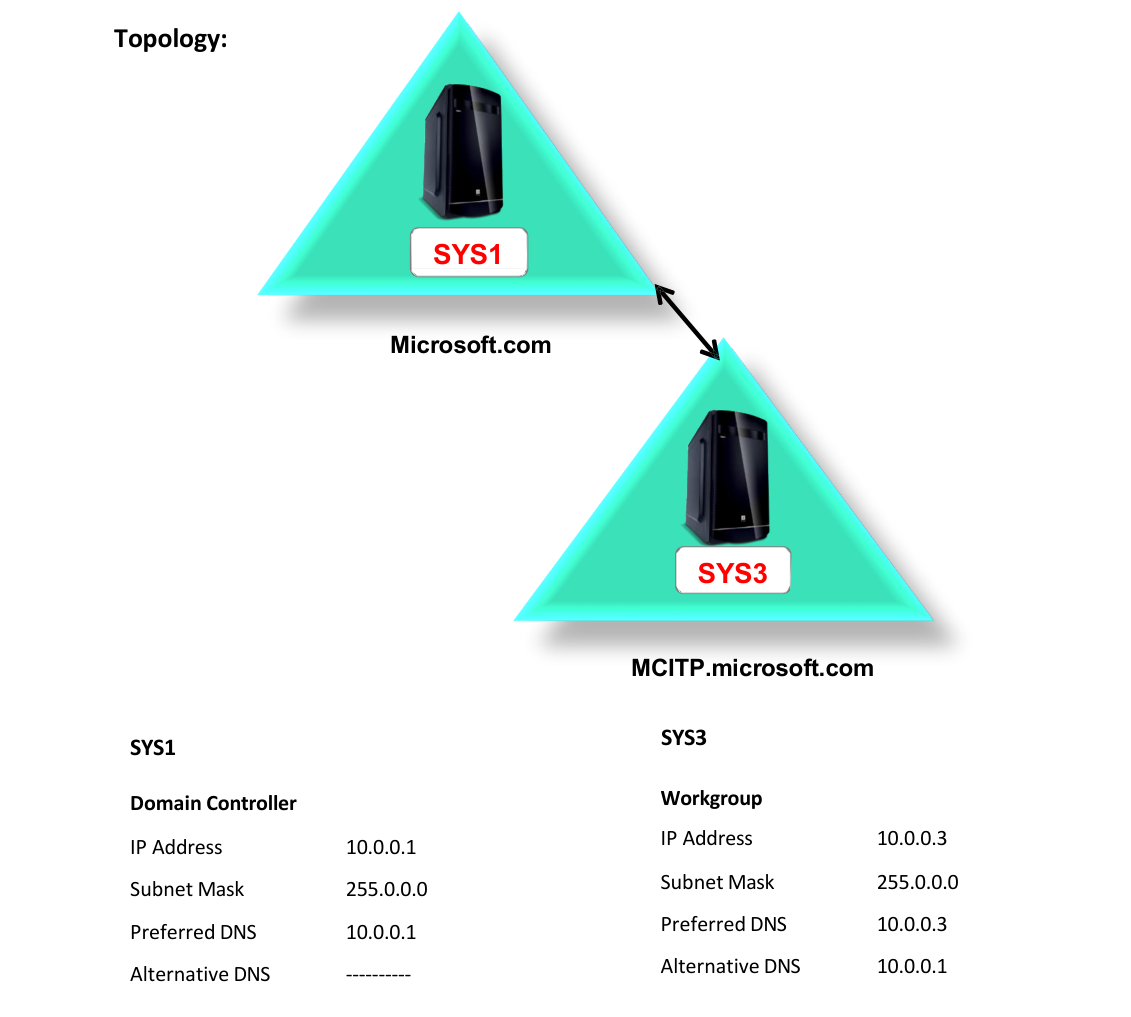

Network Topology

Lab 27 Topology

Step-by-Step Instructions

Step 1

Login as Administrator to the Workgroup Computer.

Step 1 Screenshot

Step 2

Assign IP Address and preferred DNS Server Address

Step 3

Click Server Manager Child Domain Host Name : SYS3 IP Address :

Step 10

0.0.3 DNS Server :

Step 10

0.0.3 Alternate DNS

Step 10

0.0.1 : User Name : Administrator

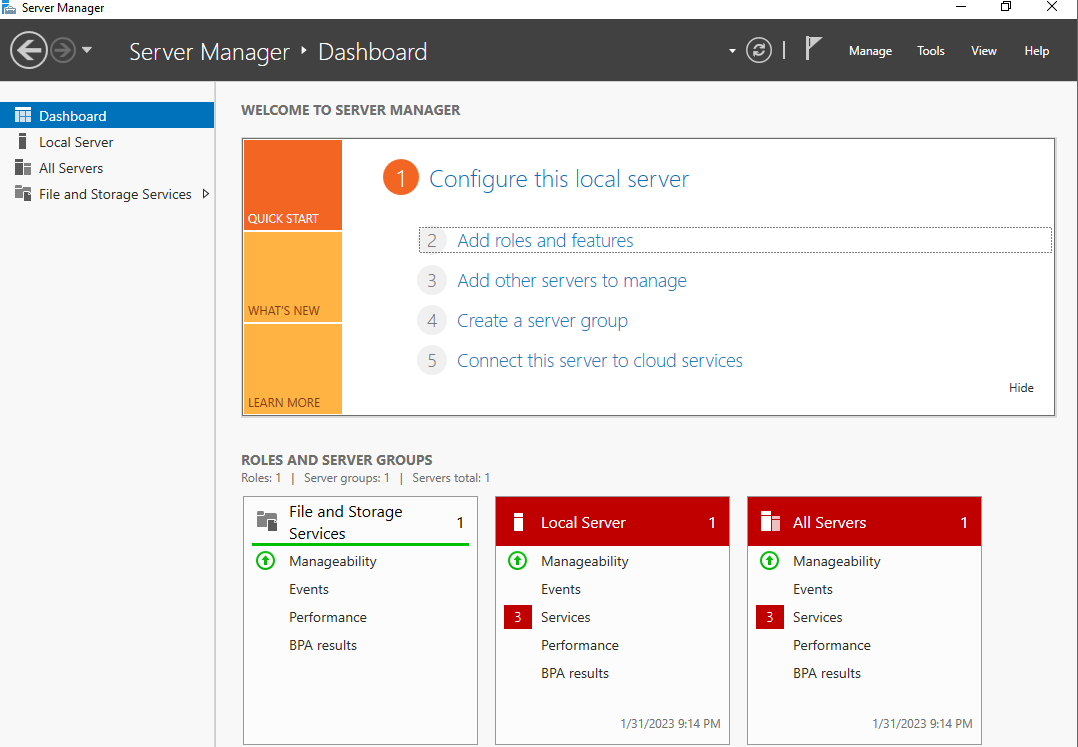

Step 4

In Server Manager Dashboard, Click Add roles and features.

Step 4 Screenshot

Step 5

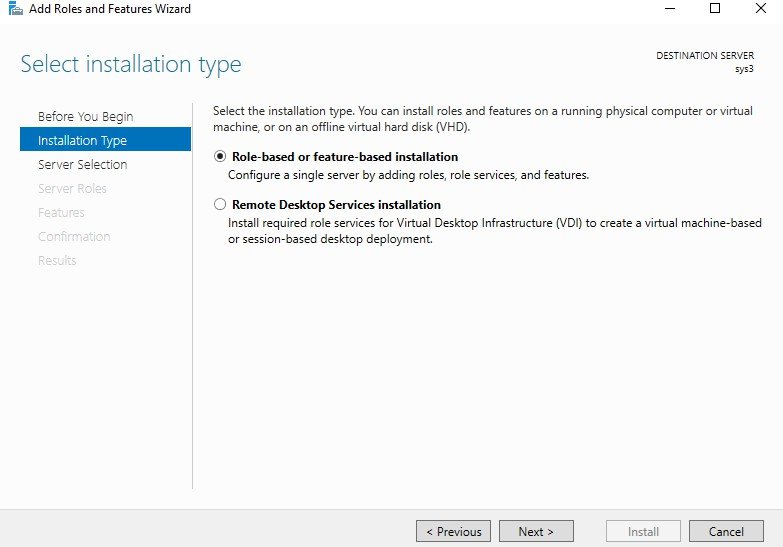

In Before you begin page, click Next, In Select installation type, select Role-based or feature- based installation, and click Next.

Step 5 Screenshot

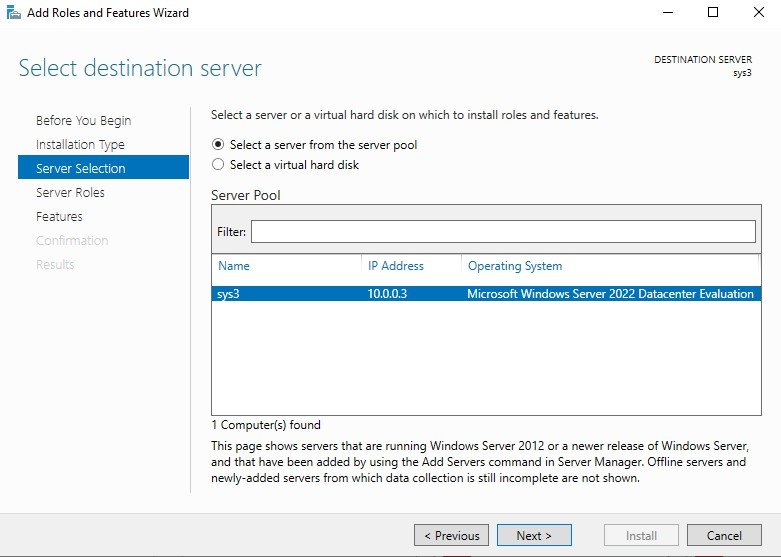

Step 6

In Select destination server, from Server Pool select SYS2, click Next.

Step 6 Screenshot

Step 7

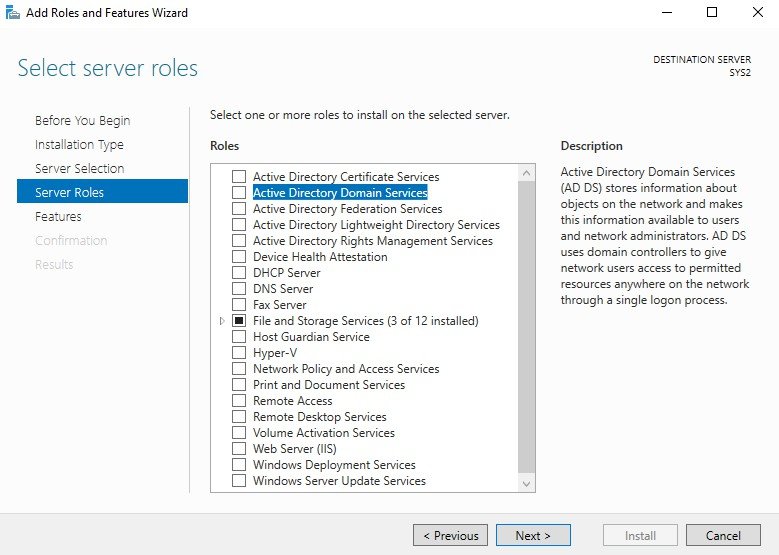

In Roles, check the box Active Directory Domain Services.

Step 7 Screenshot

Step 8

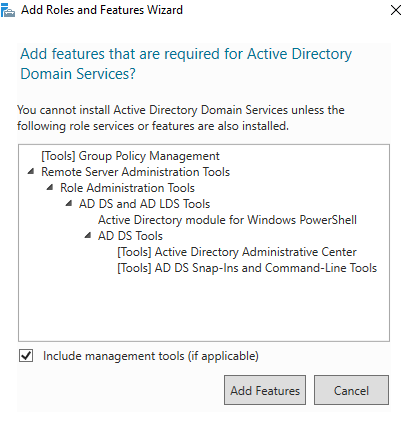

Click Add Features, to install the required features for Active Directory Domain Services. Click Next.

Step 8 Screenshot

Step 9

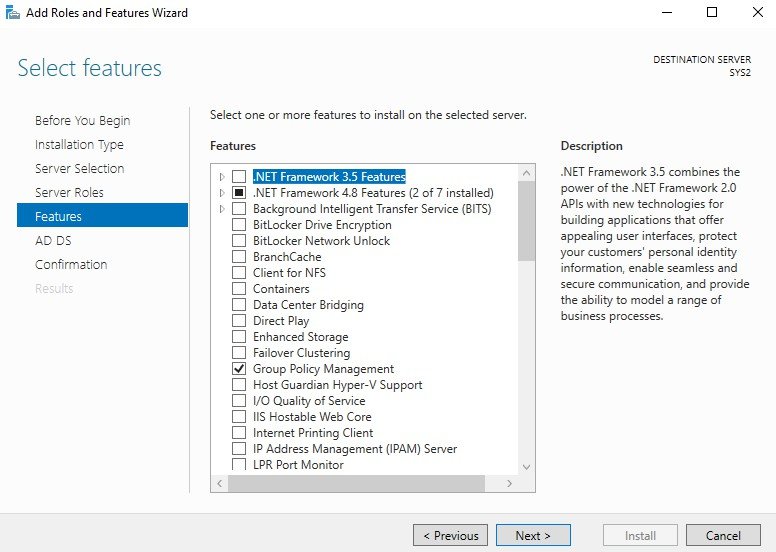

In Select features wizard, click Next.

Step 9 Screenshot

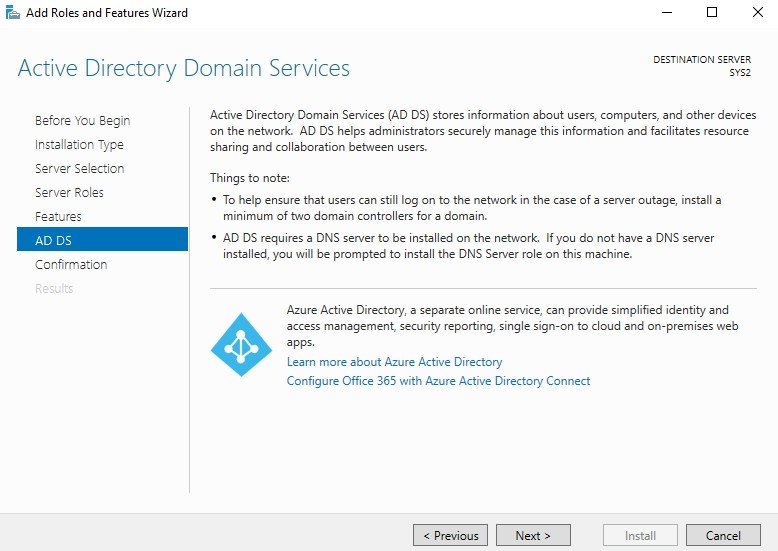

Step 10

In Active Directory Domain Services wizard, click Next.

Step 10 Screenshot

Step 11

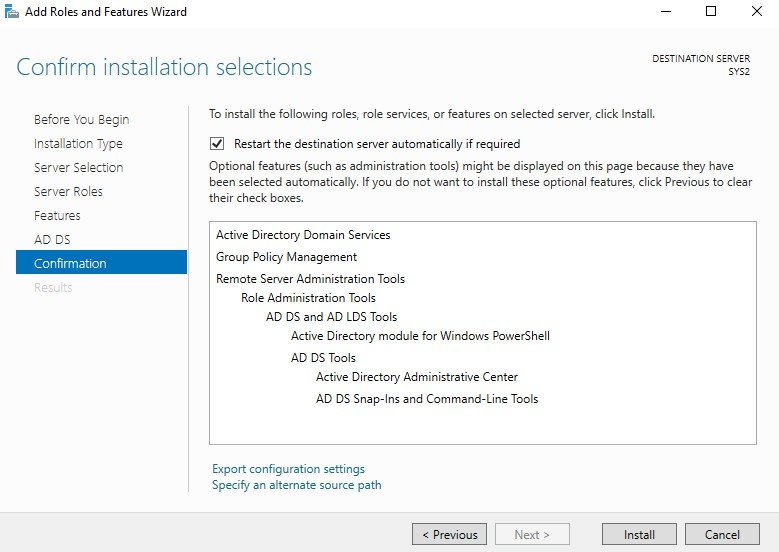

Check the box Restart the destination server automatically if required. Click Install.

Step 11 Screenshot

Step 12

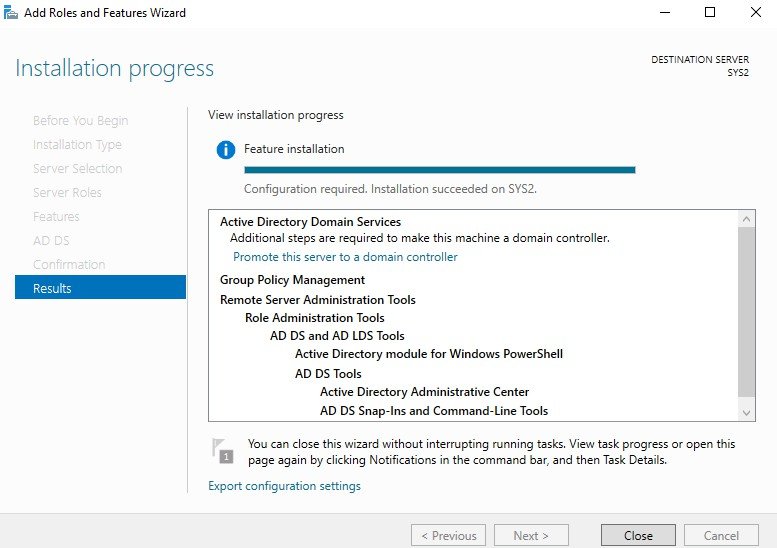

Click Promote this server to a domain controller.

Step 12 Screenshot

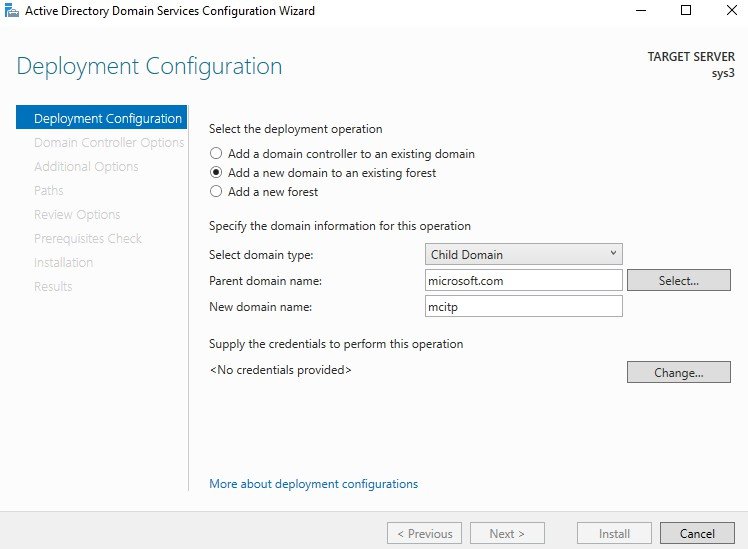

Step 13

In Deployment Configuration wizard, select Add a new domain to an existing forest, select domain type Child Domain, enter the Parent domain name (Ex: Microsoft.com) and New domain name (Ex: MCITP), and click Change.

Step 13 Screenshot

Step 14

Enter User Name: Administrator@microsoft.com and Password, click OK.

Step 14 Screenshot

Step 15

Click Next

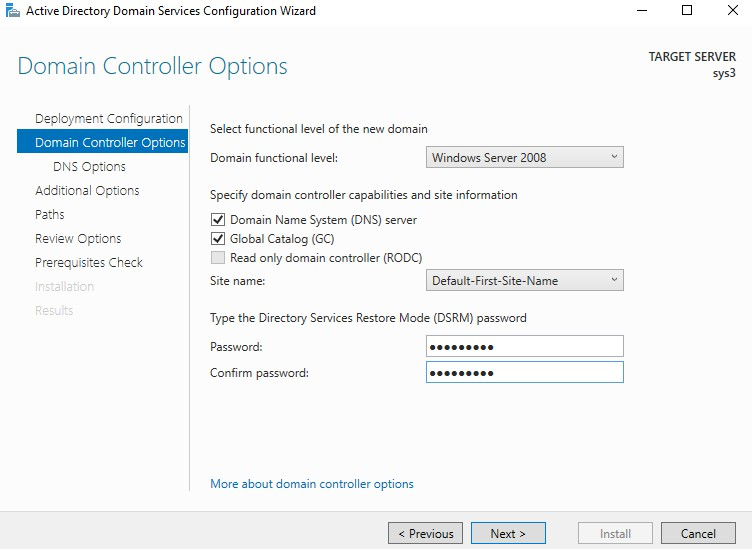

Step 16

In Domain Controller Options, review the default settings, and type the Directory Services Restore Mode Password and Confirm password and click Next.

Step 16 Screenshot

Step 17

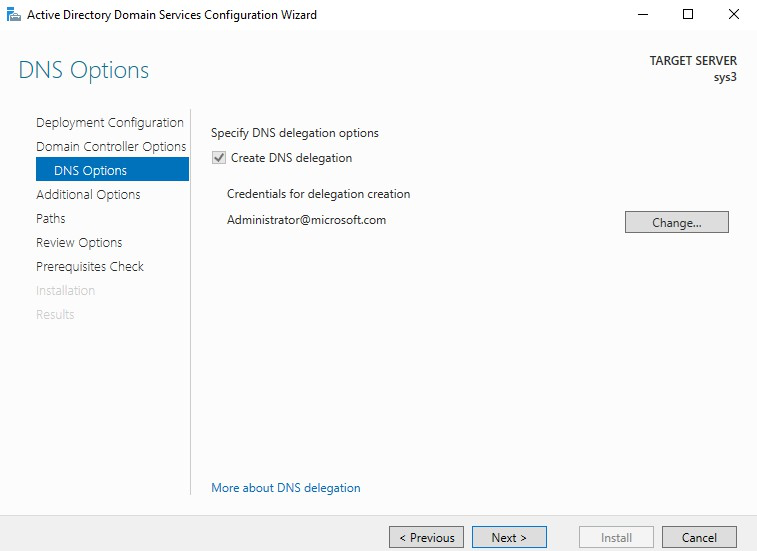

On DNS Options page, click Next.

Step 17 Screenshot

Step 18

In Additional Options Page, Review the NetBIOS domain name (MCITP), Click Next.

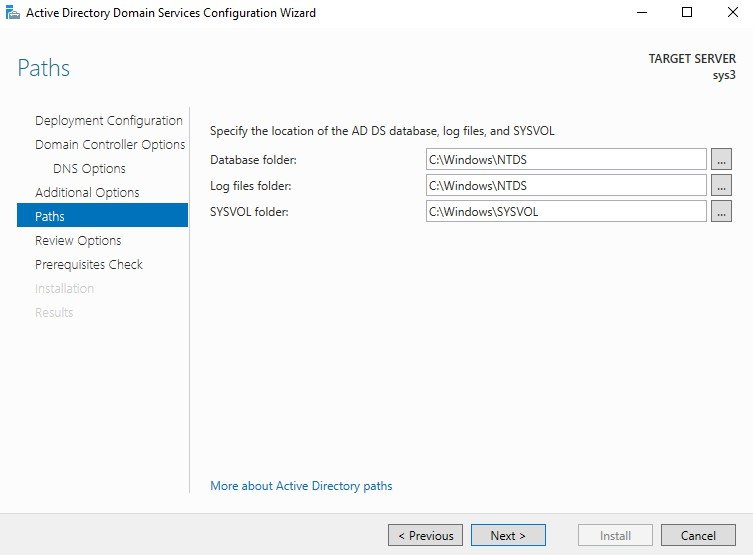

Step 19

Verify the location of the AD DS database, log files, and SYSVOL, click Next.

Step 19 Screenshot

Step 20

Review the Summary and click Next.

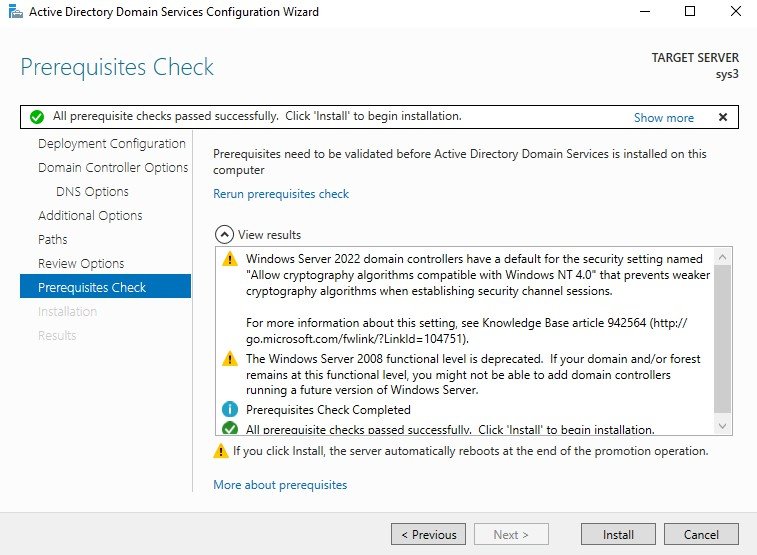

Step 21

Click Install to begin installation.

Step 21 Screenshot

Step 22

After restarting the computer Active directory will be installed.

Verification

  • 1. Go to Server Manager, Local Server verify for Domain MCITP.MICROSOFT.COM
  • Go to Active Directory Domains and Trusts verify for parent and child domain.
  • Example: MICROSOFT.COM and MCITP.MICROSOFT.COM.
