Creating New Domain Tree in Existing Forest
Step by Step

To create new tree domain in existing forest

Prerequisites

  • Before working on this lab, You must have
  • A computer running windows 2022 server Domain Controller.
  • A computer running running windows 2022.

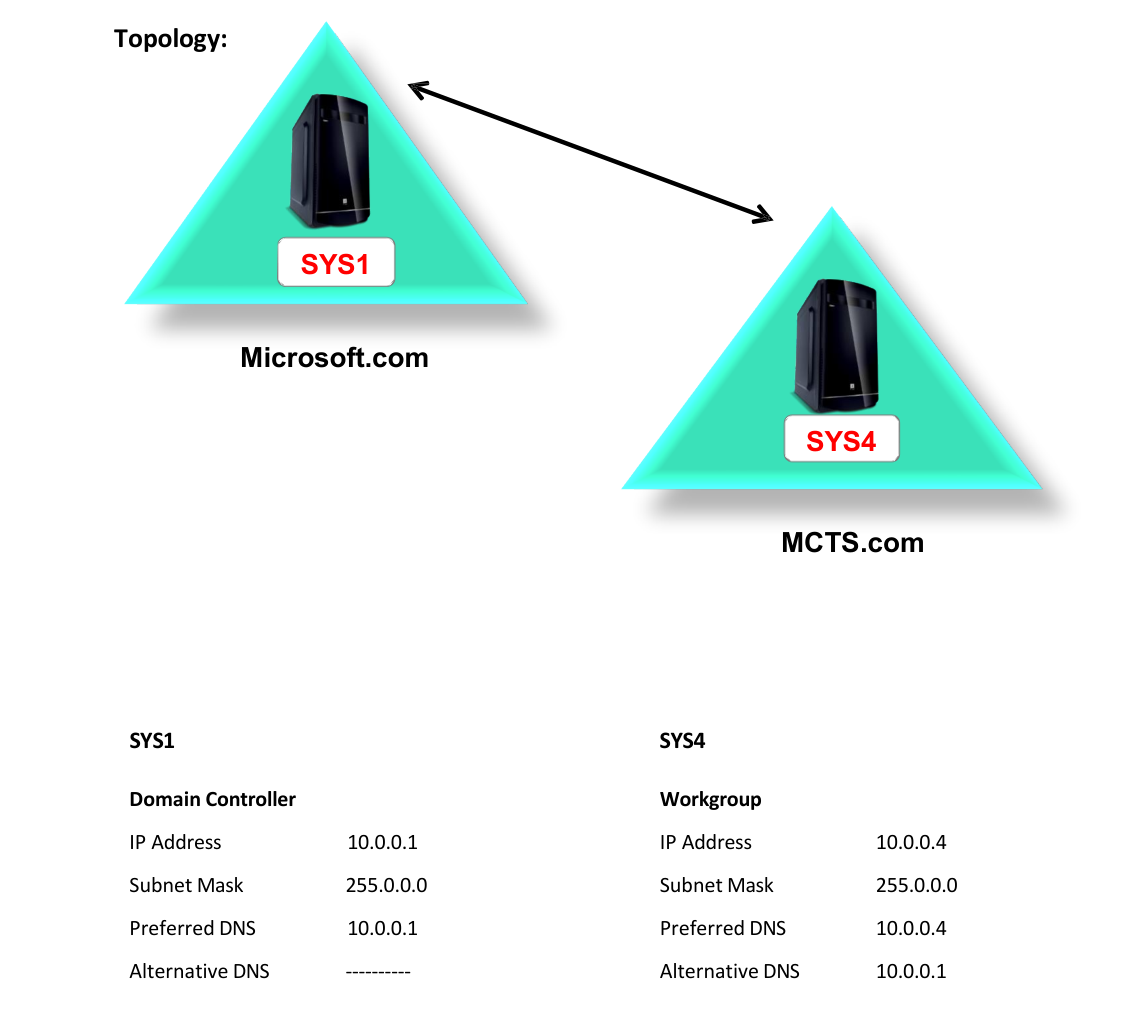

Network Topology

Lab 28 Topology

Step-by-Step Instructions

Step 1

Login as Administrator to the Workgroup Computer.

Step 1 Screenshot

Step 2

Assign IP Address and preferred DNS Server Address

Step 3

Click Server Manager Tree Domain Host Name : SYS4 IP Address :

Step 10

0.0.4 DNS Server :

Step 10

0.0.4 Alternate DNS

Step 10

0.0.1 : User Name Administrator :

Step 4

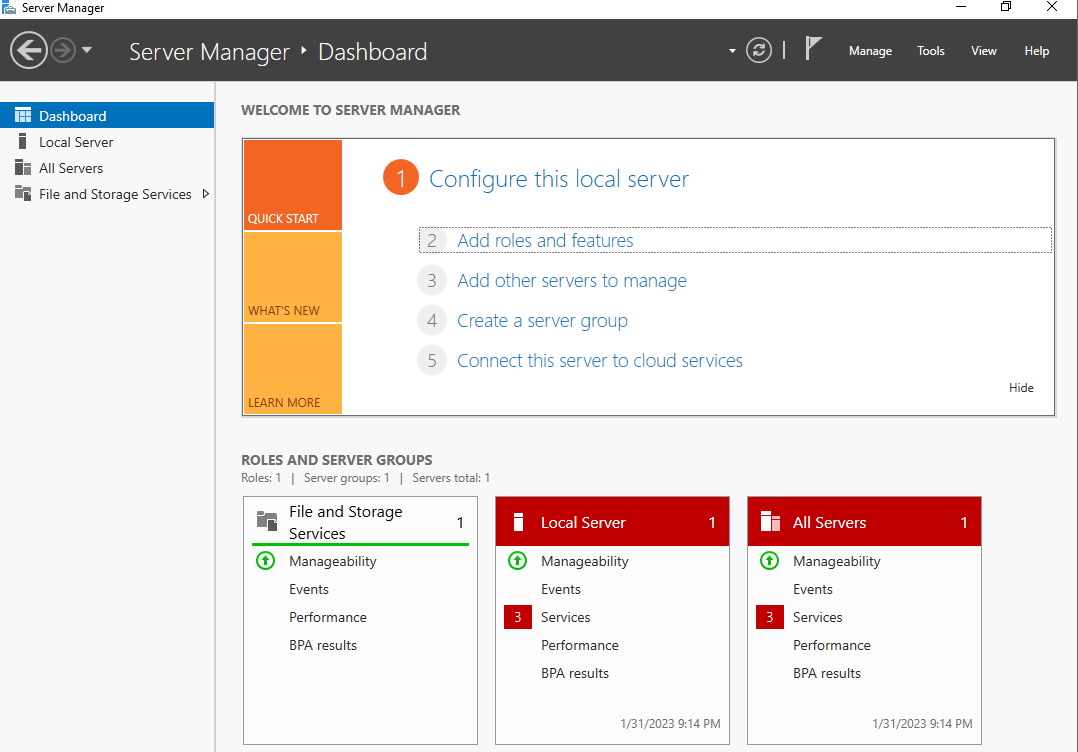

In Server Manager Dashboard, Click Add roles and features.

Step 4 Screenshot

Step 5

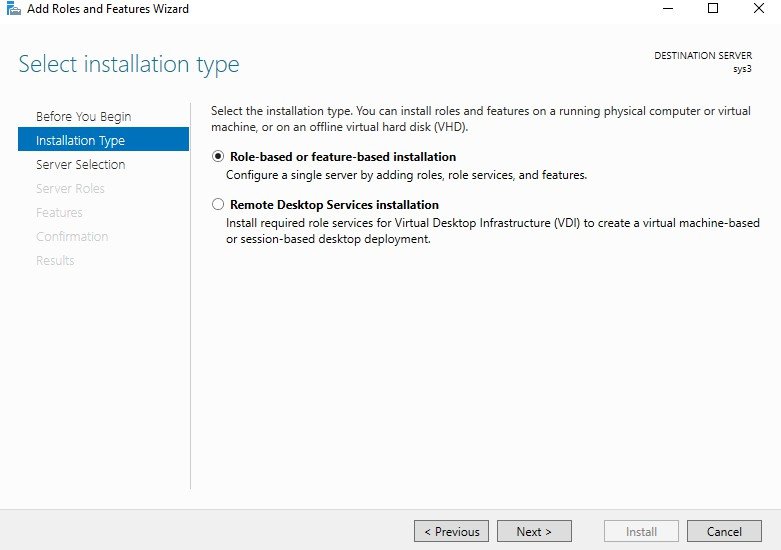

In before you begin page, click Next, In Select installation type, select Role-based or

feature-based installation, and click Next.
Step 5 Screenshot

Step 6

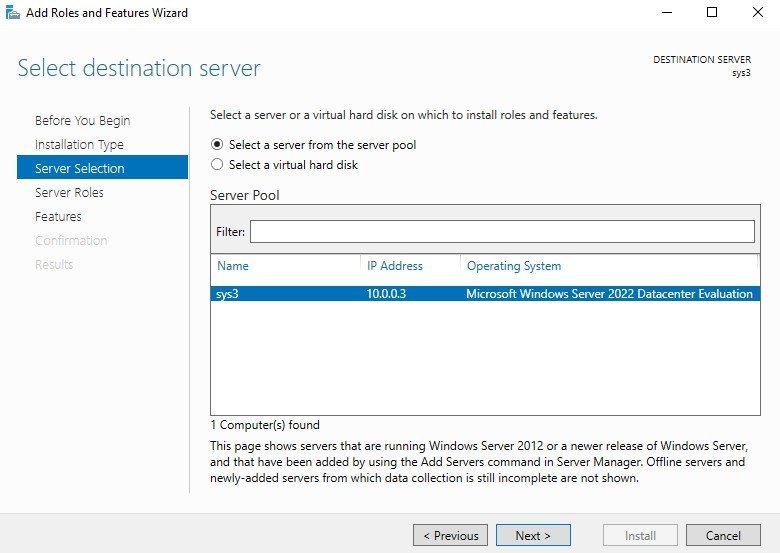

In Select destination server, from Server Pool select SYS4, click Next.

Step 6 Screenshot

Step 7

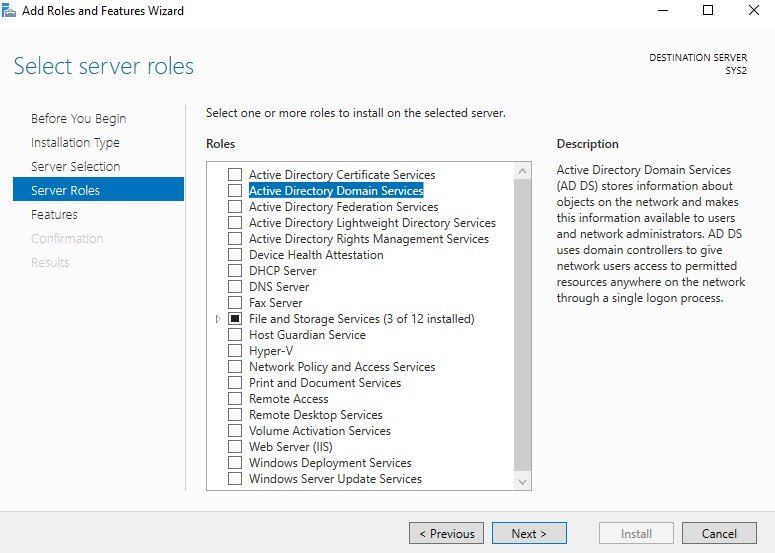

In Roles, check the box Active Directory Domain Services.

Step 7 Screenshot

Step 8

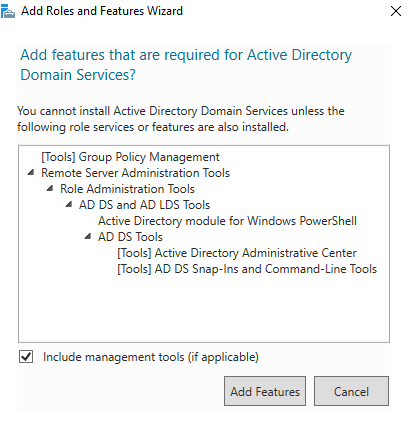

Click Add Features, to install the required features for Active Directory Domain Services. Click Next.

Step 8 Screenshot

Step 9

In Select features wizard, click Next.

Step 10

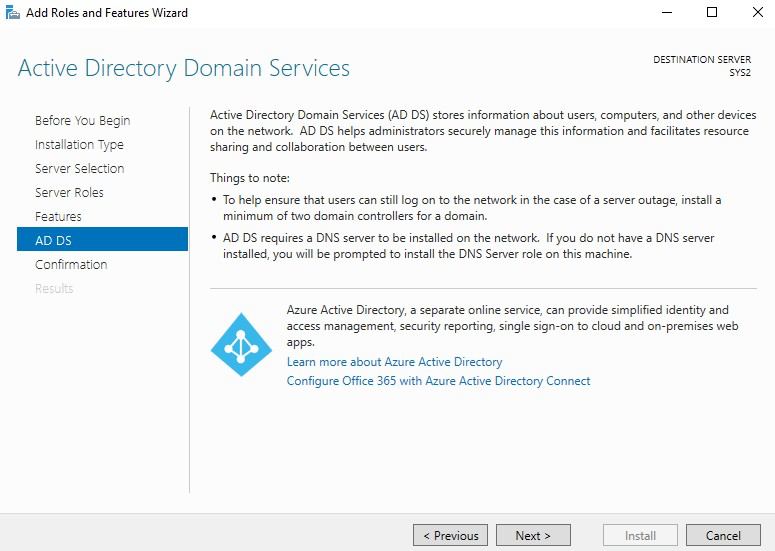

In Active Directory Domain Services wizard, click Next.

Step 10 Screenshot

Step 11

Check the box Restart the destination server automatically if required. Click Install.

Step 12

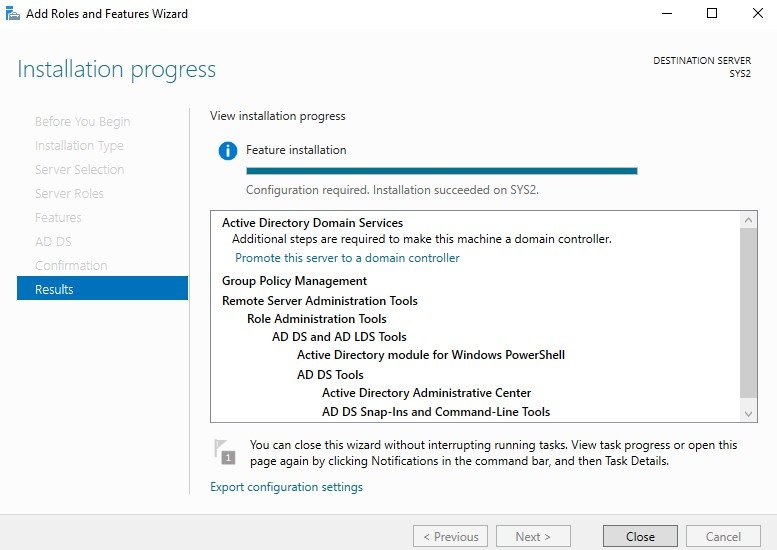

Click Promote this server to a domain controller.

Step 12 Screenshot

Step 13

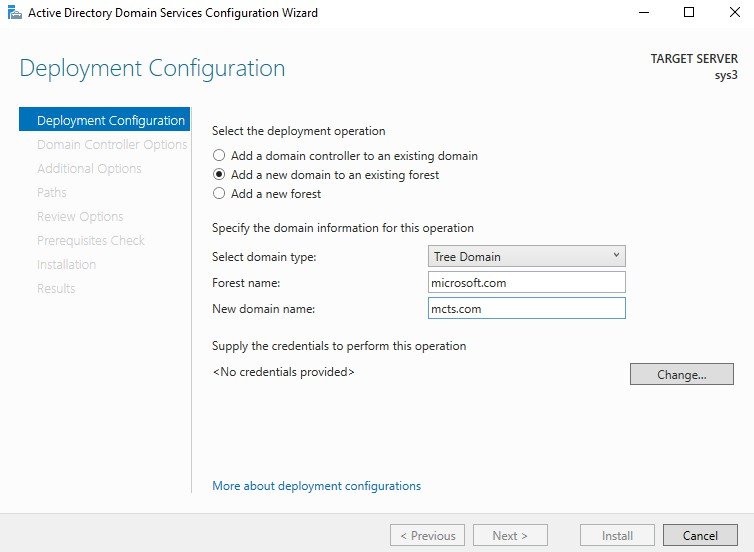

In Deployment Configuration wizard, select Add a new domain to an existing forest, select domain type Tree Domain, enter the Forest name (Ex:MICROSOFT.COM) and New domain name (Ex: MCTS.COM), and click Change.

Step 13 Screenshot

Step 14

Enter User Name: Administrator@microsoft.com and Password, click OK.

Step 14 Screenshot

Step 15

Click Next.

Step 16

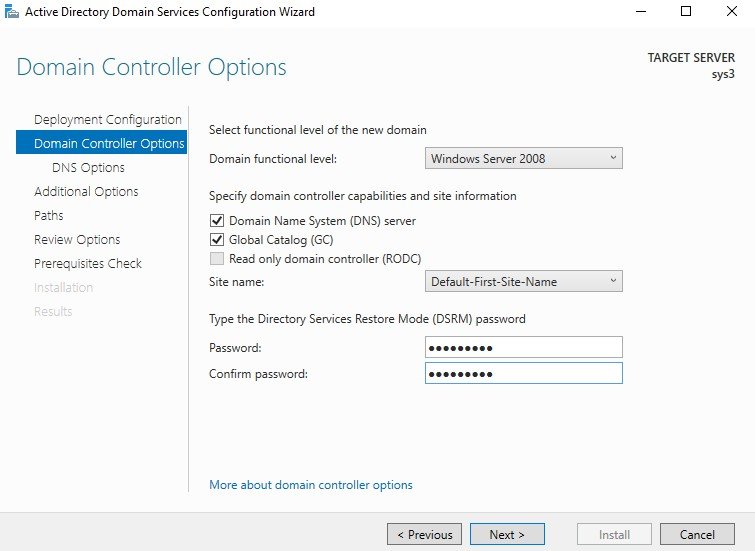

In Domain Controller Options, review the default settings, and type the Directory Services Restore Mode Password and Confirm password and click Next.

Step 16 Screenshot

Step 17

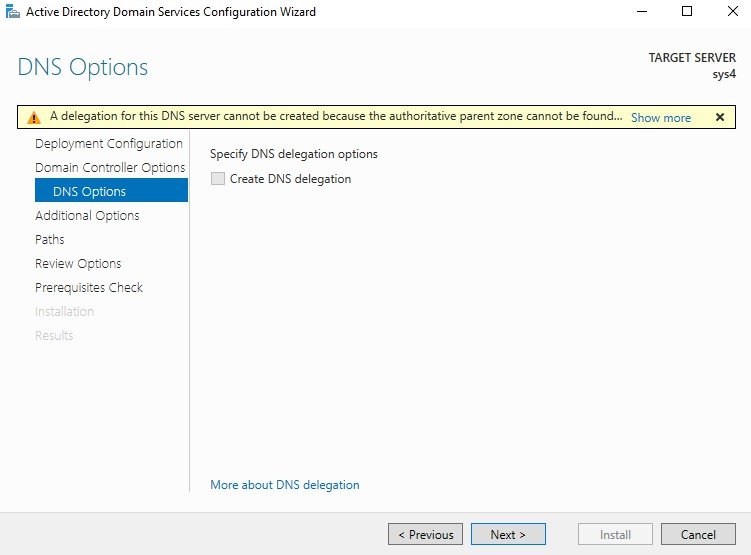

On DNS Option page, Click Next.

Step 17 Screenshot

Step 18

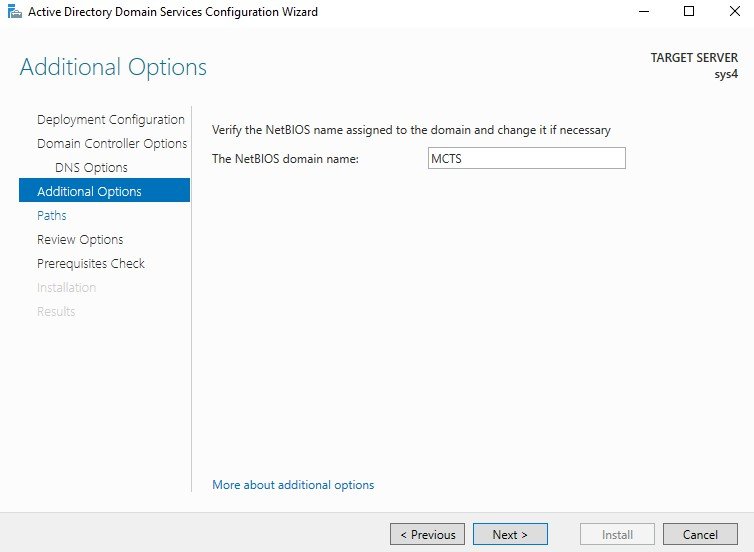

In Additional Options Page, Review the NetBIOS domain name (MCTS) click Next.

Step 18 Screenshot

Step 19

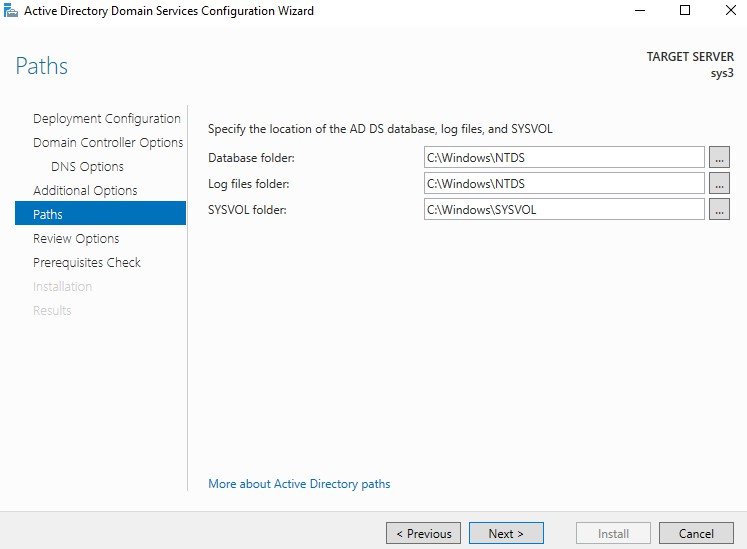

Verify the location of the AD DS database, log files, and SYSVOL, click Next.

Step 19 Screenshot

Step 20

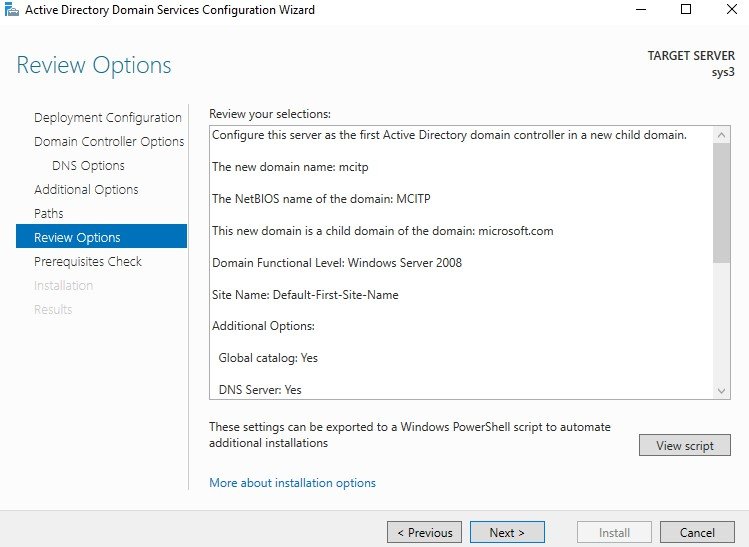

Review the Summary and click Next.

Step 20 Screenshot

Step 21

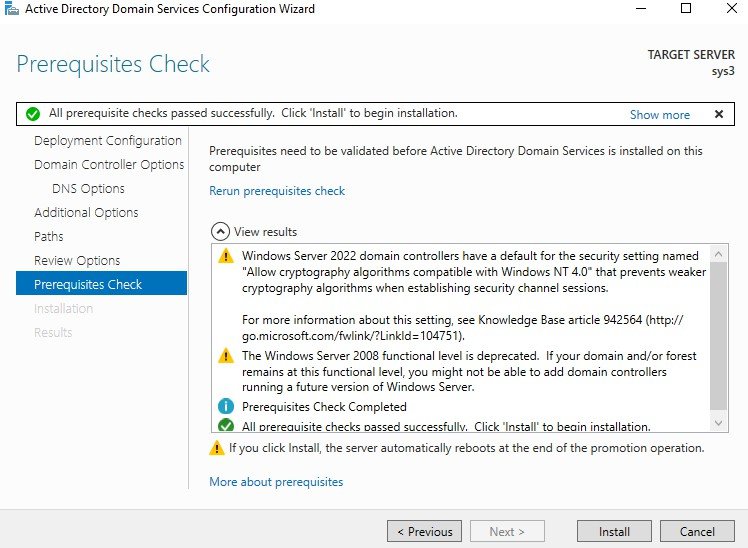

Click Install to begin installation.

Step 21 Screenshot

Step 22

After restarting the computer Active directory will be installed.

Verification

  • 1. Go to Server Manager, Local Server verify for Domain MCTS.COM
  • 2. Go to Active Directory Domains and Trusts verify for parent and New Tree domain.
  • Example: MICROSOFT.COM and MCTS.COM
