🌐 CYBEREDU • LAB 29

Transfer Operations Masters
Step by Step

To transfer operations masters from primary to backup

Prerequisites

  • Before working on this lab, You must have
  • A computer running windows 2022 server Domain Controller.
  • A Member Server running windows 2022 server Additional Domain Controller.

Network Topology

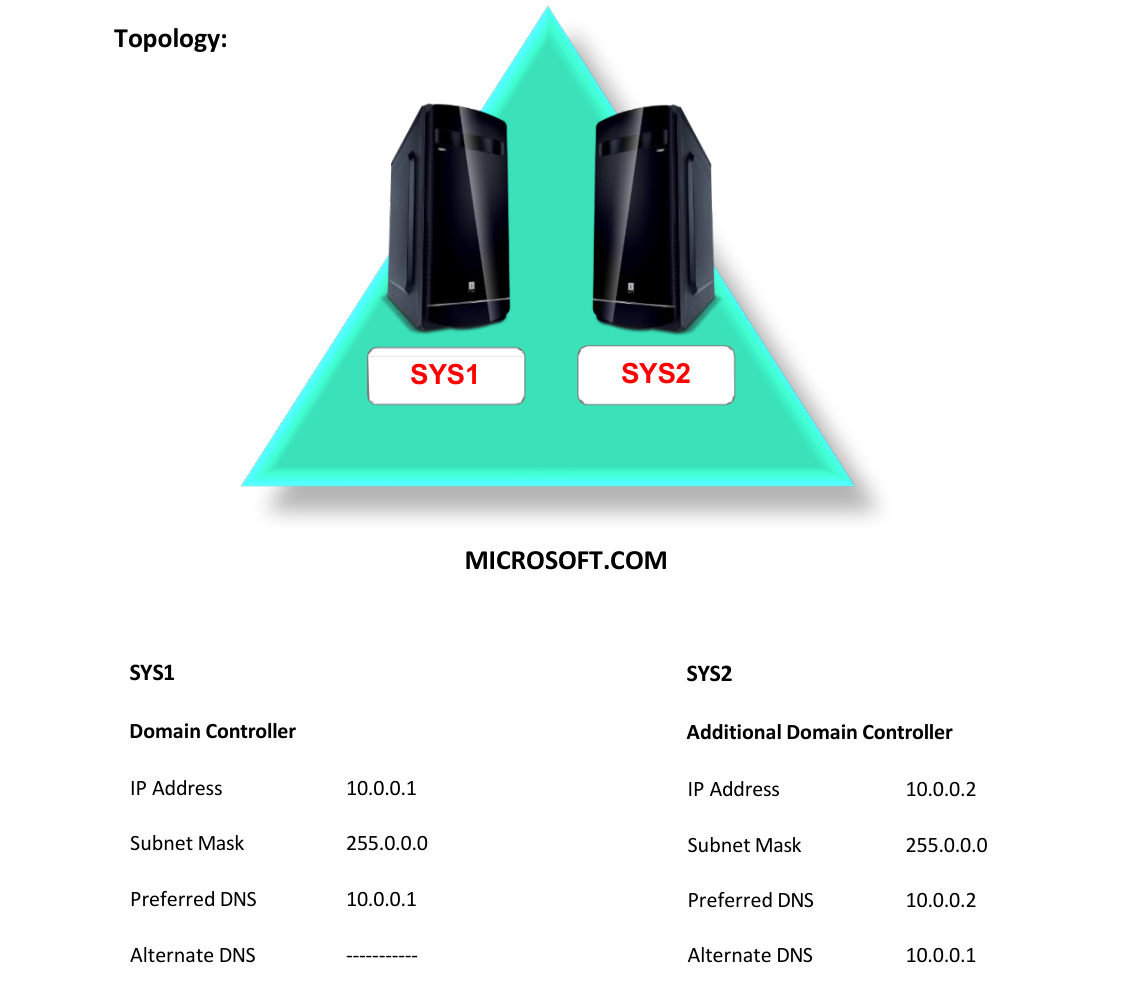

Lab 29 Topology

Step-by-Step Instructions

Step 1

Log on to Domain Controller as Administrator.

Step 2

Go to Start, type CMD in Search Apps, and select Command Prompt

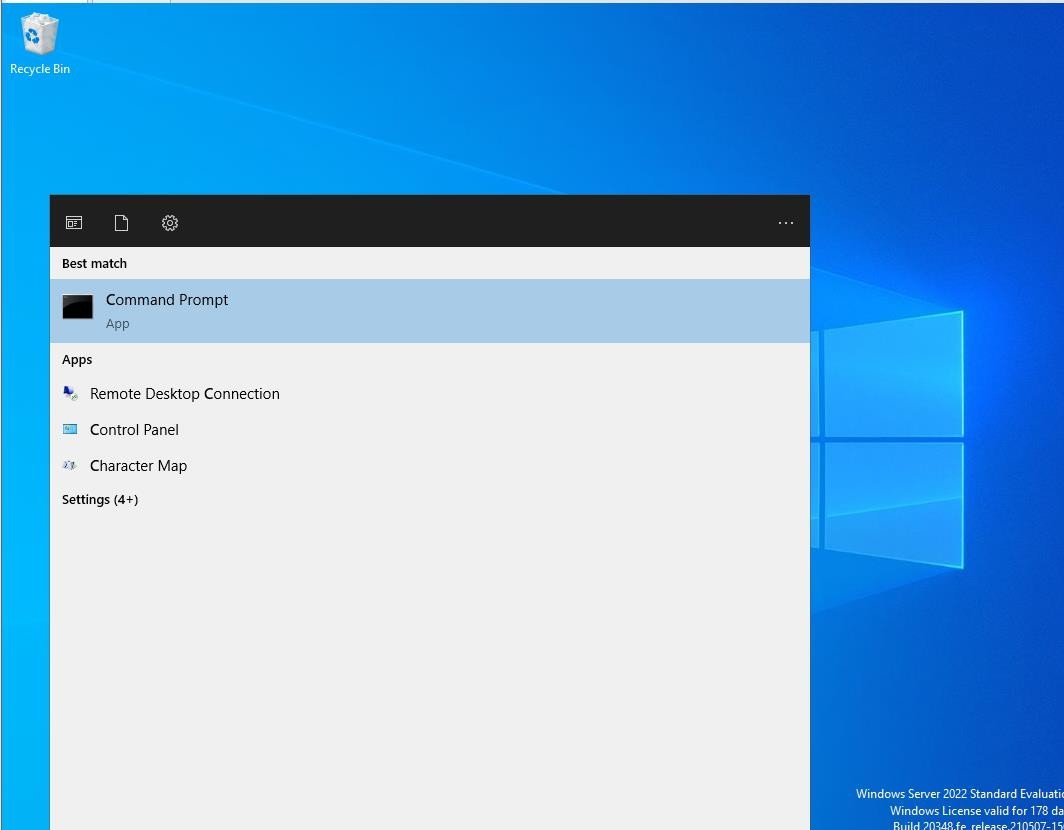

Step 2 Screenshot

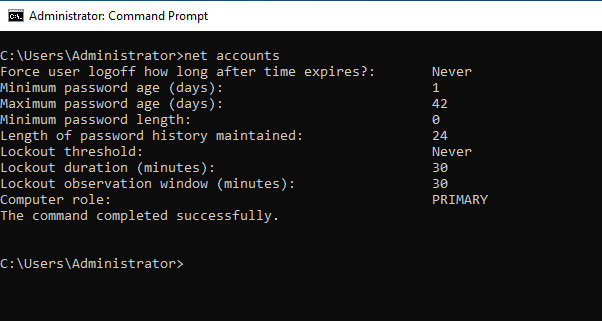

Step 3

Type Net accounts and Verify for Primary in Computer role.

Step 3 Screenshot

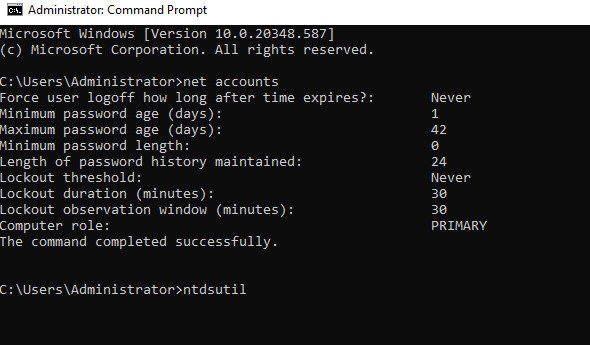

Step 4

Type Ntdsutil and Press Enter.

Step 4 Screenshot

Step 5

Type Roles and Press Enter.

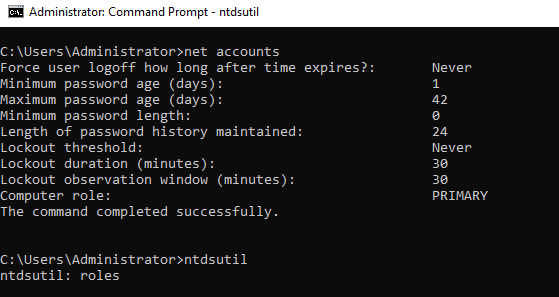

Step 5 Screenshot

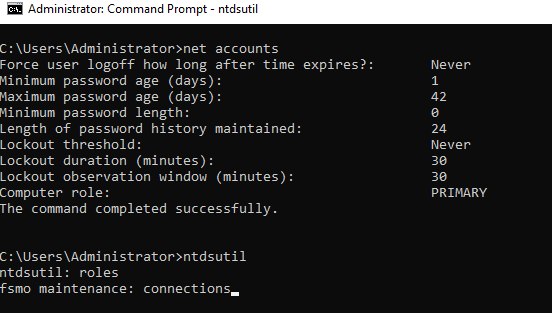

Step 6

Type Connections and Press Enter.

Step 6 Screenshot

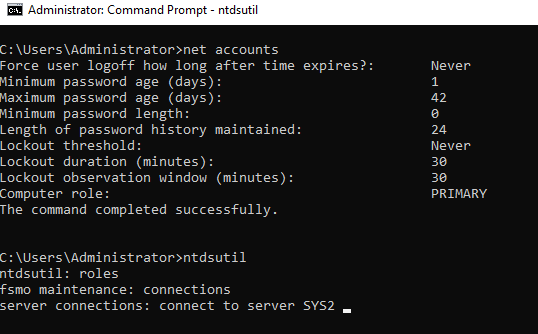

Step 7

Type Connect to server SYS2 (ADC System name) and Press Enter.

Step 7 Screenshot

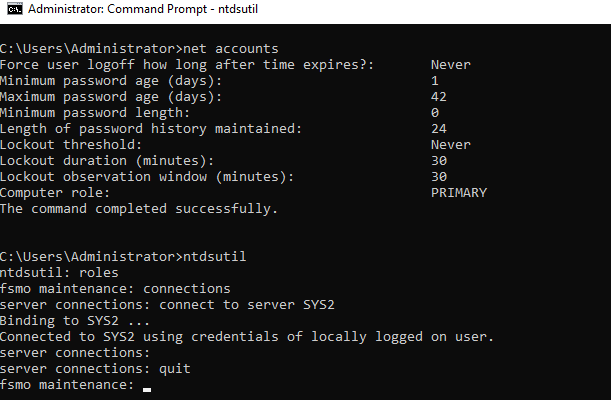

Step 8

Type: Quit

Step 8 Screenshot

Step 9

Type Help (or) ?, to see the available syntax.

Step 9 Screenshot

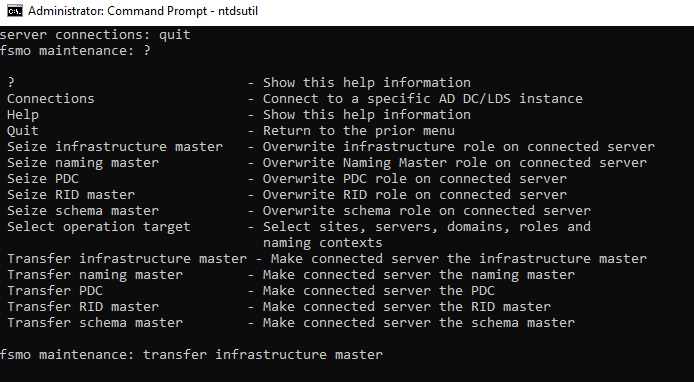

Step 10

Type Transfer infrastructure master and Press Enter.

Step 10 Screenshot

Step 11

Click YES.

Step 12

Type Transfer naming master and Press Enter.

Step 12 Screenshot

Step 13

Click YES.

Step 14

Type Transfer PDC and Press Enter.

Step 14 Screenshot

Step 15

Click YES.

Step 16

Type Transfer RID Master and Press Enter.

Step 16 Screenshot

Step 17

Click YES.

Step 18

Type Transfer Schema Master and Press Enter.

Step 18 Screenshot

Step 19

Click YES.

Step 20

Type Quit and press Enter.

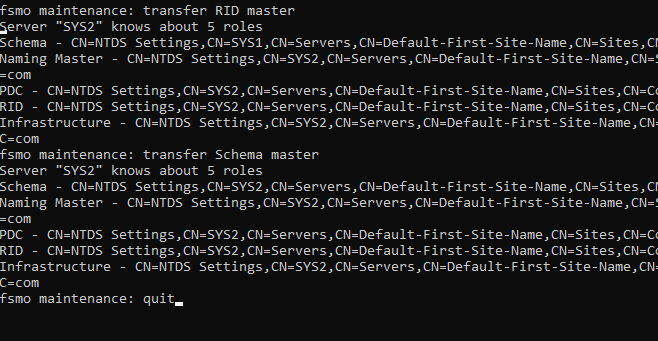

Step 20 Screenshot

Step 21

Type Quit and Press Enter.

Step 21 Screenshot

Verification

  • 1. Type Net accounts and Press Enter.
  • 2. Computer role of Domain Controller will be converted to Backup and Additional
  • Domain Controller will be converted to Primary.
