Prerequisites
- Before working on this lab, You must have
- A computer running windows 2022 server Domain Controller.
- A computer running running windows 2022 or windows 10

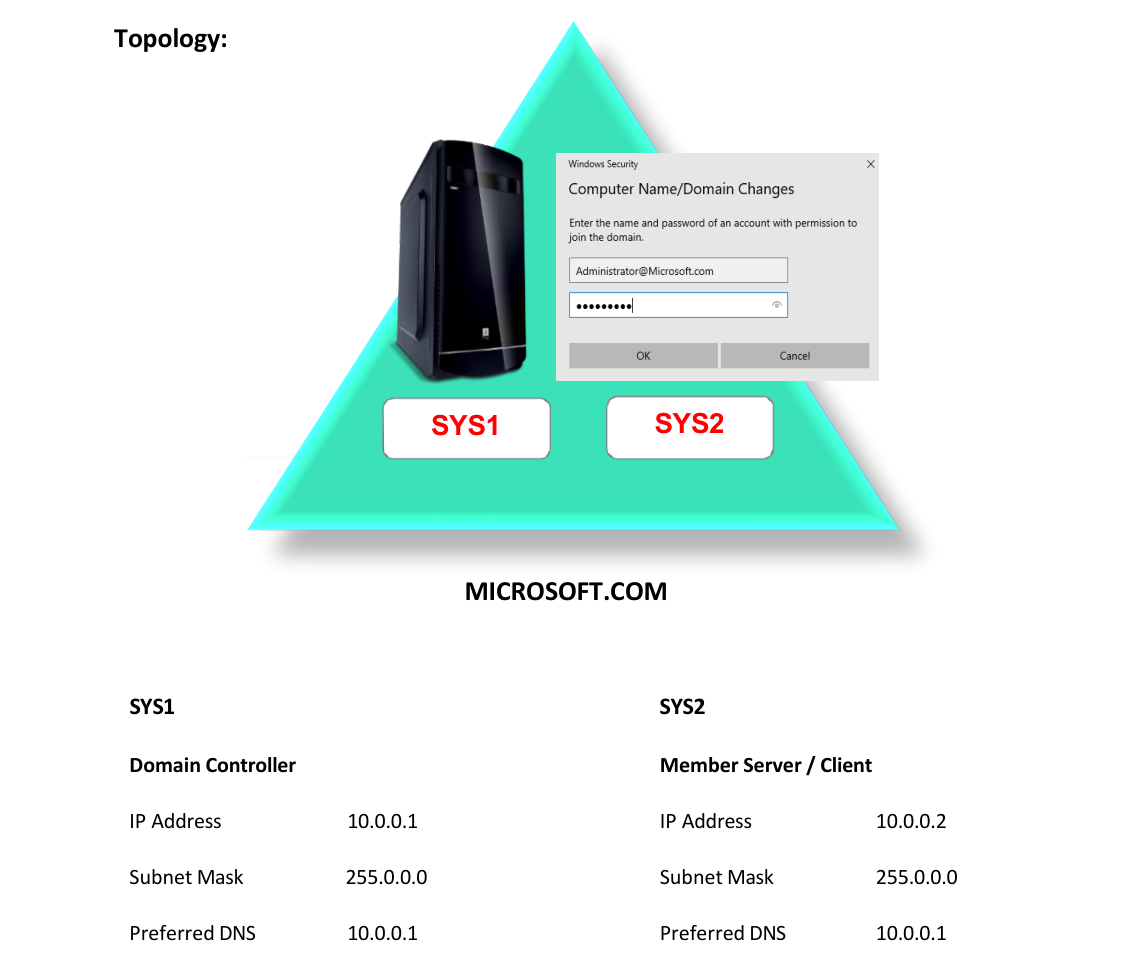

Network Topology
Step-by-Step Instructions
Step 1
Go to D.C, create a Shared Folder (Folder Redirection) with everyone Read/Write.

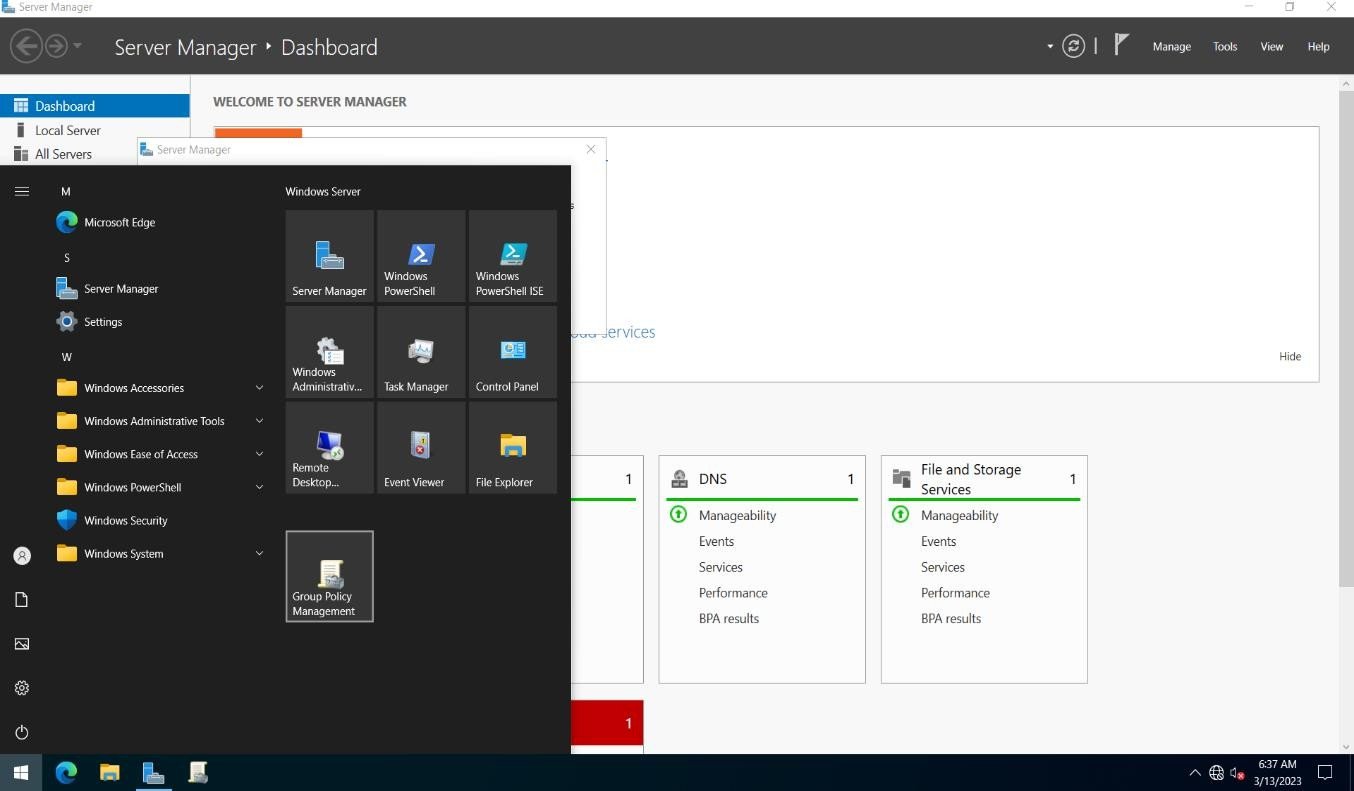

Step 2
Press Windows Key to go to Start, select Group Policy Management.

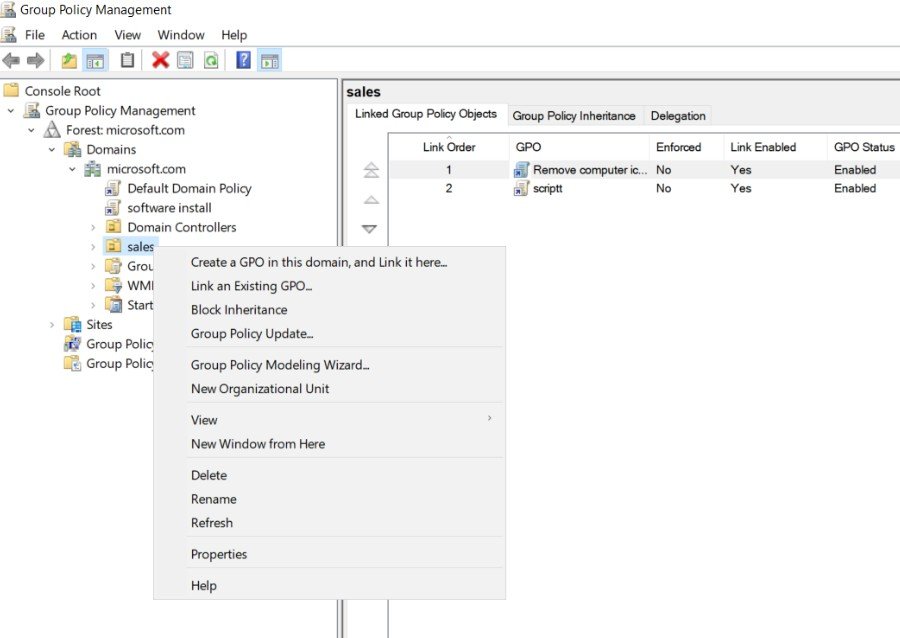

Step 3
Right click OU (Sales) à Select Create a GPO...
Step 4
Enter name (Ex: Folder Redirection) and click OK.

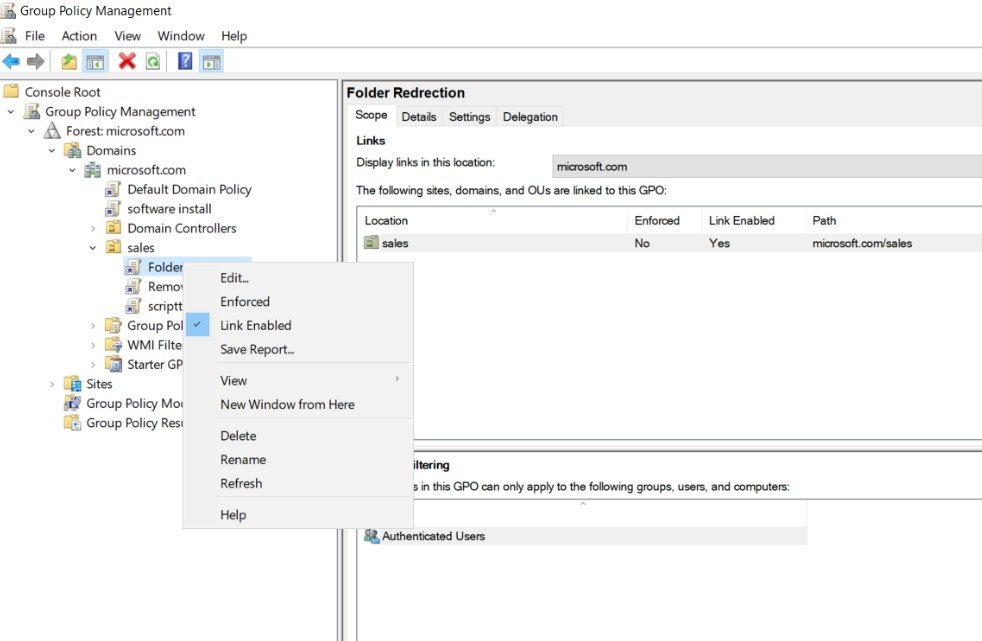

Step 5
Right Click created GPO, select Edit.

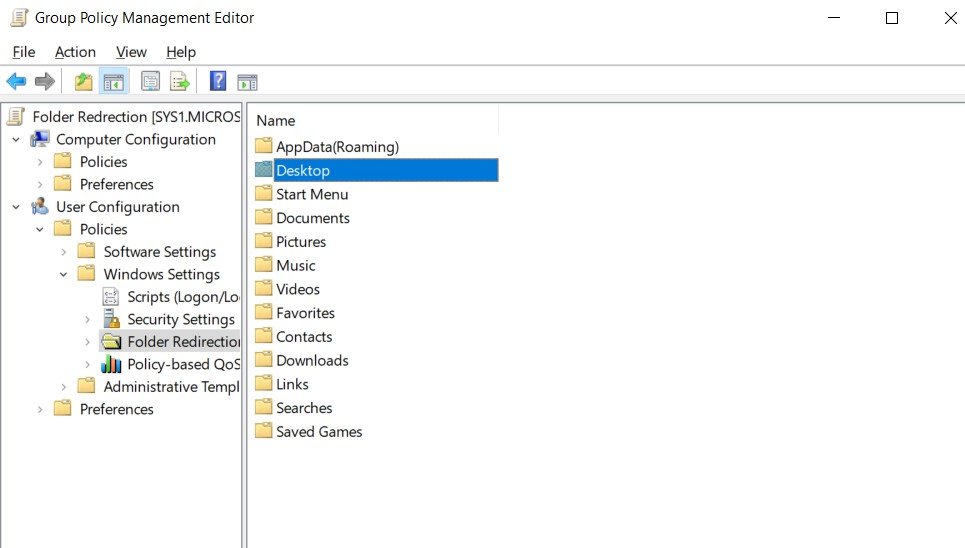

Step 6
Expand User configuration à Policies à Windows Settings à Folder Redirection à Select Desktop à Right click Desktop à Select Properties
Step 7
Select Basic Redirection, select Create a folder for each user under the root path, click Browse à select the shared folder from Network, \\SYS1\Folder Redirection, click Apply and OK.
Verification

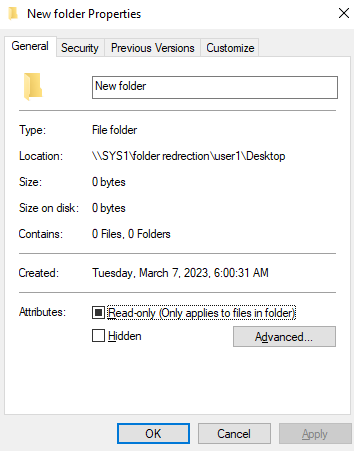

- 1. Login as user (S1) in client system.
- 2. Create a folder on desktop, Right Click on the folder à properties and check the path,
- it should show Network path (\\SYS1\FolderRedirection\S1\Desktop).
