Prerequisites
- Before working on this lab, You must have
- A computer running windows server 2022 Domain Controller.
- A Member Server running windows server 2022.

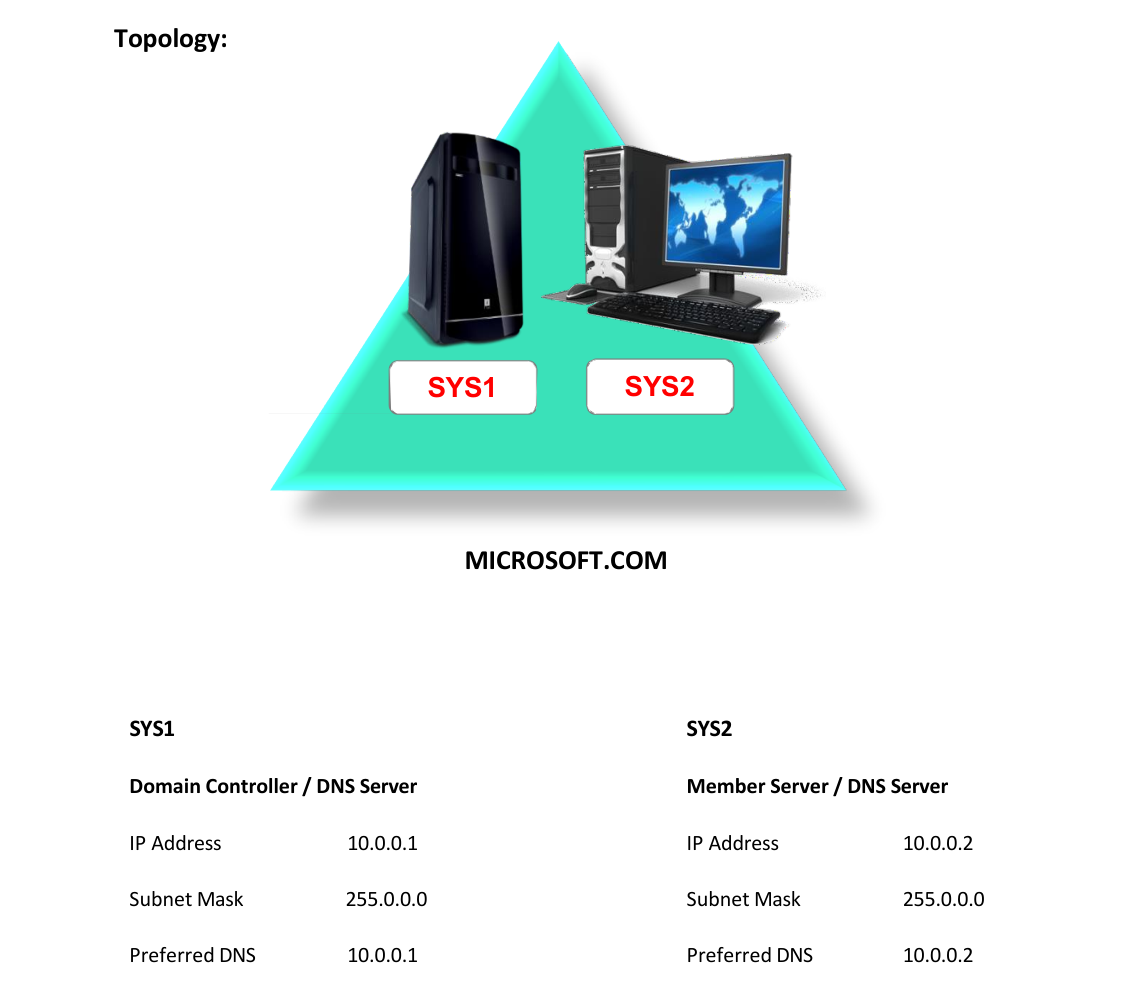

Network Topology
Step-by-Step Instructions
Step 1
Log on to SYS1 and create a primary zone Msn.com along with host and alias records.
Step 1

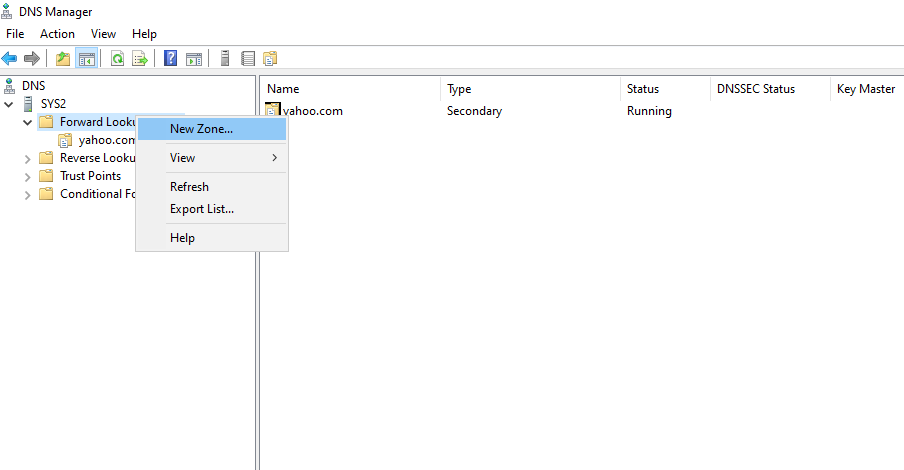

Log on to SYS2 and Go to Start, select DNS.
Step 2
In the DNS dialog box, Expand DNS Server name in the left pane, right click Forward Lookup Zones à Select New Zone à Next
Step 3

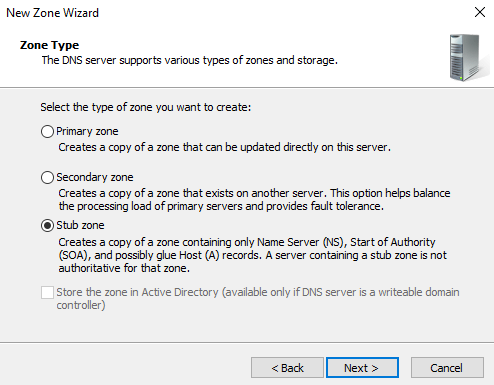

Select Stub zone à Next
Step 4
Give the name of primary zone (Msn.com) à click Next.
Step 5

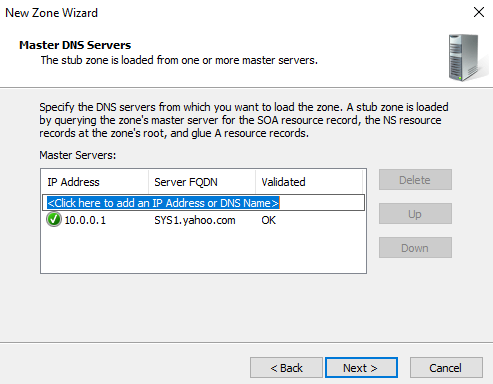

Give the IP address of primary zone Ex: 10.0.0.1 à click Next.
Step 6
Click Next à Finish.
Step 7

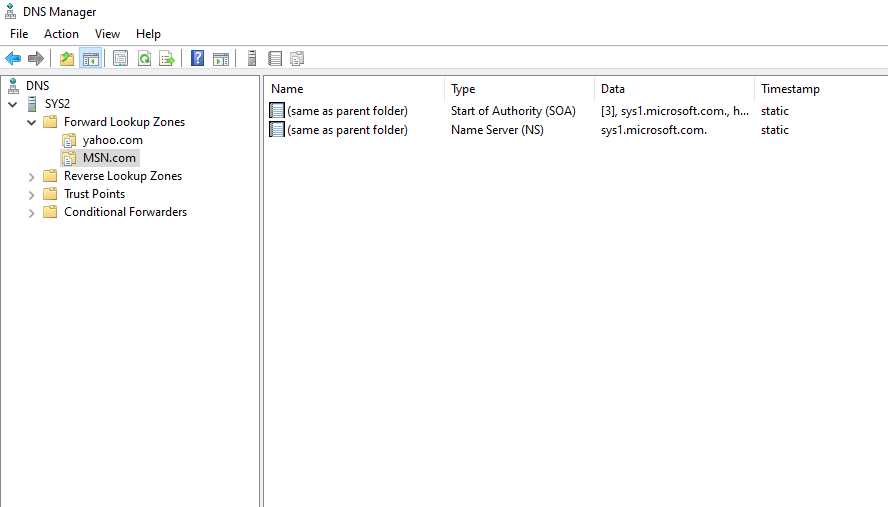

Refresh the stub zone and verify for records.
Verification
Verify that your configuration works as expected. Open tools and check settings matching the parameters.
