🌐 CYBEREDU • LAB 7

Configuring Client (Windows 10)
Step by Step

To join Clients in Domain.

Prerequisites

  • Before working on this lab, You must have
  • A computer running windows 2022 server Domain Controller.
  • A computer running windows 10

Network Topology

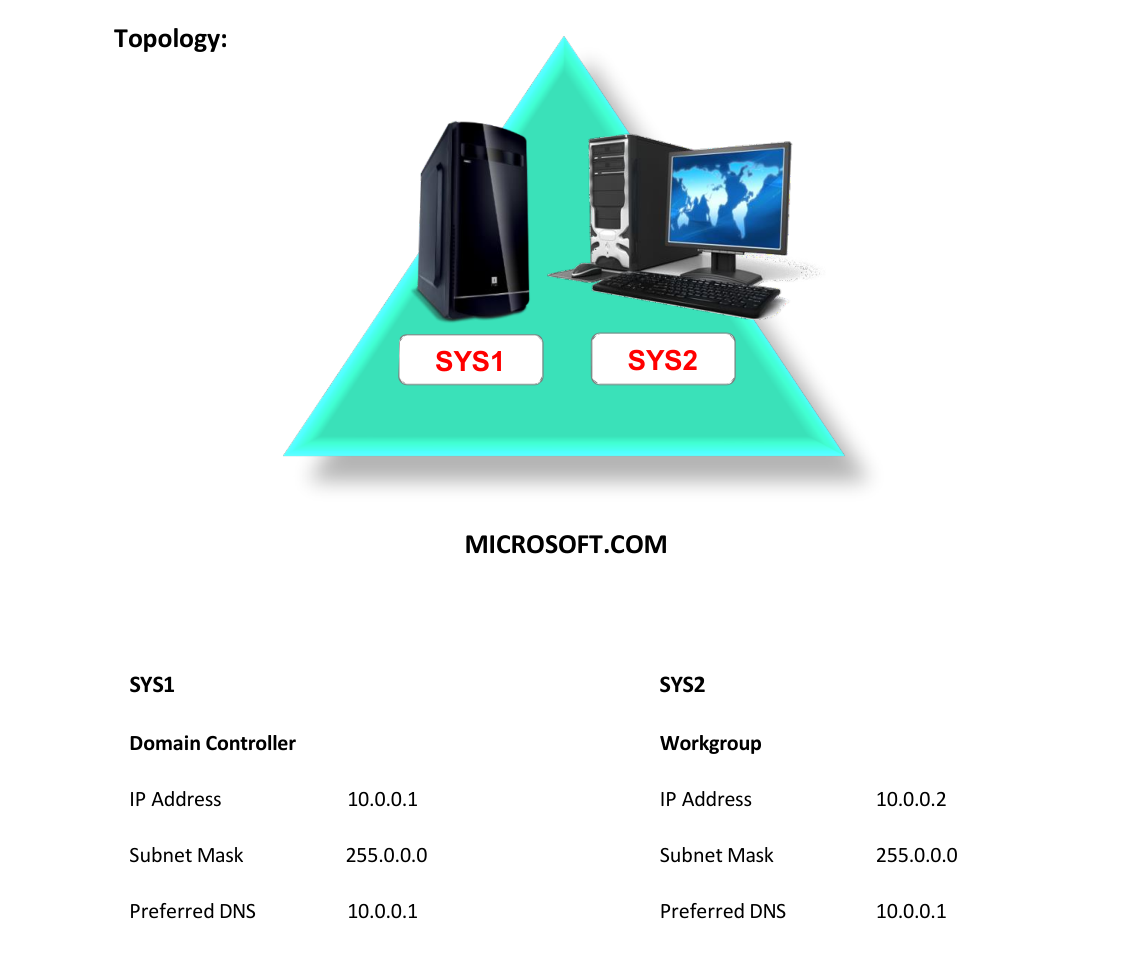

Lab 7 Topology

Step-by-Step Instructions

Step 1

Log in as Administrator to Workgroup Computer.

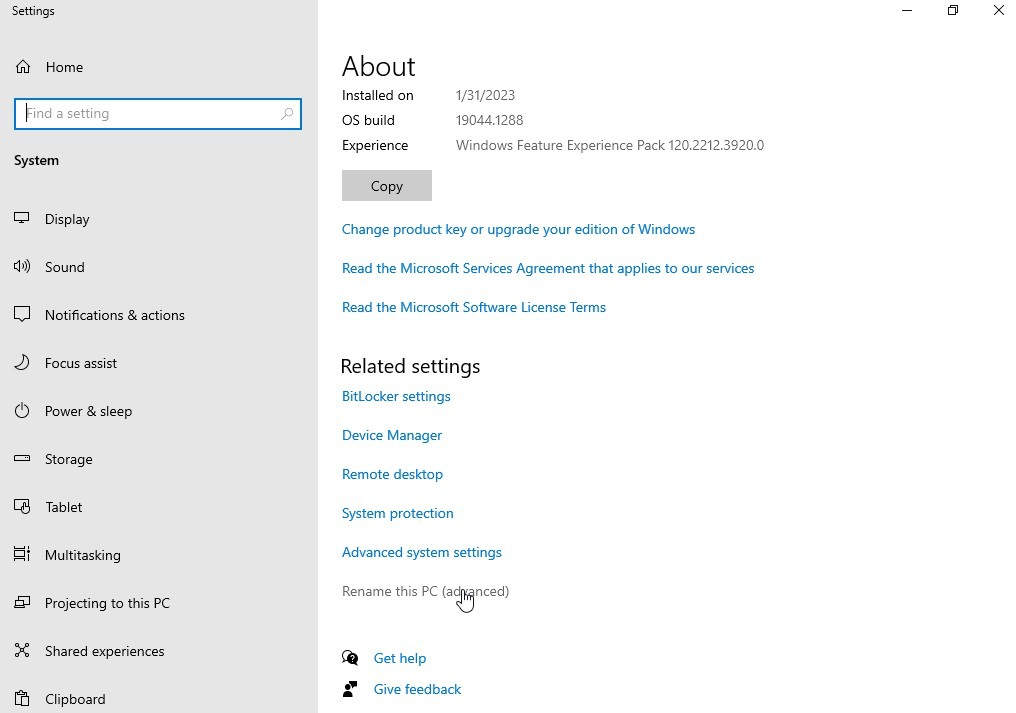

Step 1 Screenshot

Step 2

Right click Computer Icon and click Properties à Rename this pc (Advance)

Step 3

In the System properties dialog box click Change.

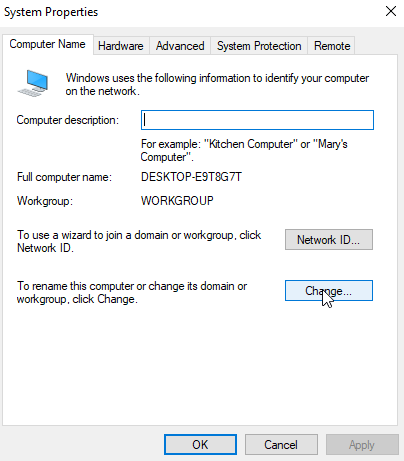

Step 3 Screenshot

Step 4

Select the Member of Domain and enter the Domain Name (Ex:Microsoft.com)

Step 4 Screenshot

Step 5

Enter the user name Administrator and Password, click OK.

Step 5 Screenshot

Step 6

Welcome Message appears indicating that the computer was successful in joining the Domain, click OK and OK, It will ask for restart, click Restart Now.

Step 6 Screenshot

Step 7

After restarting the computer, it will become Client.

Verification

  • 1. Right click Computer Icon à Properties.
  • 2. Click Computer Name, domain, and workgroup settings and verify for the
  • Domain Name MICROSOFT.COM.
