Prerequisites
- Before working on this lab, You must have
- A computer running windows server 2022 Domain Controller.
- A Member Server running windows server 2022 or Client Running Windows 10.

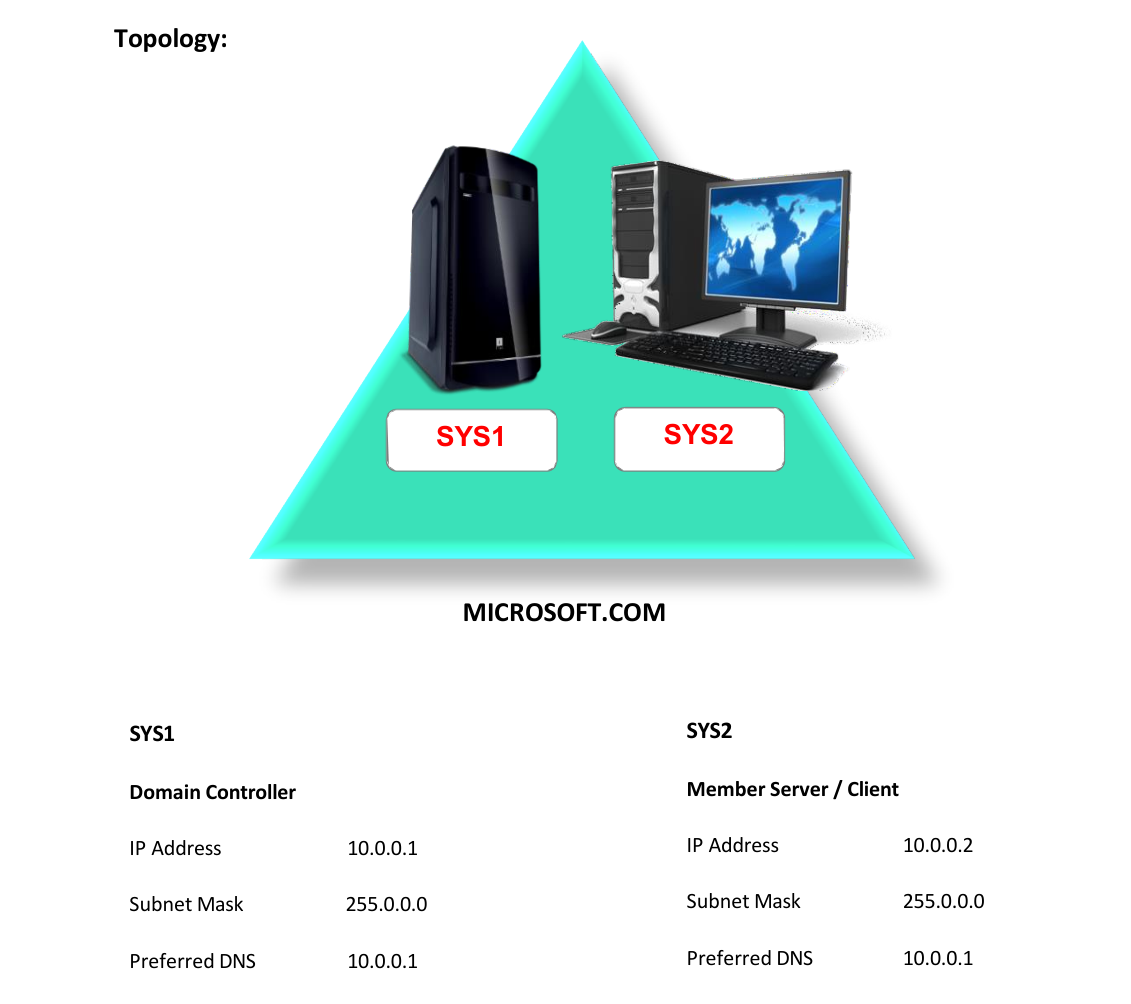

Network Topology
Step-by-Step Instructions
Step 18
Create multiple iSCSI Virtual Disk (Ex: Vdisk4, Vdisk5, Vdisk6...)

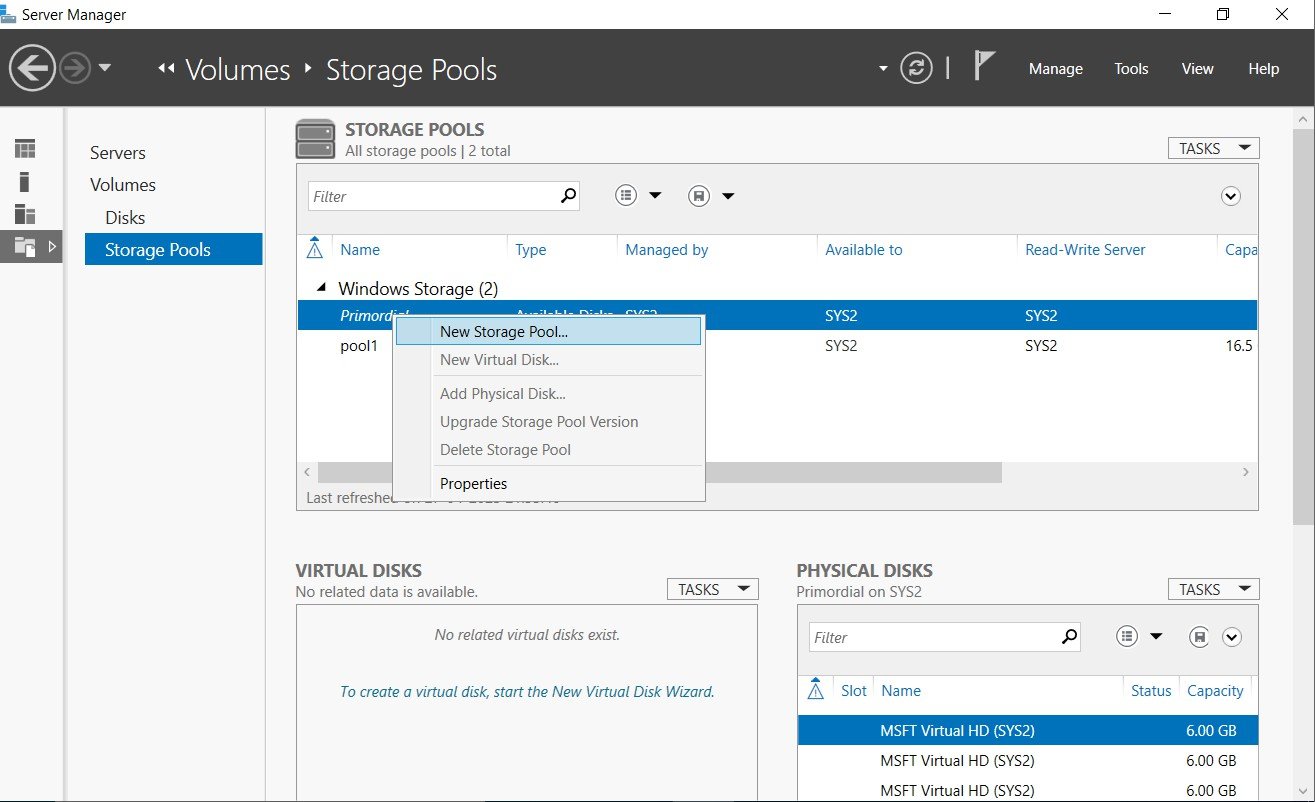

Step 1
Go to Server Manager à File and Storage Services à Storage Pools à right click Primordial storage pool à select NewStoragePool.

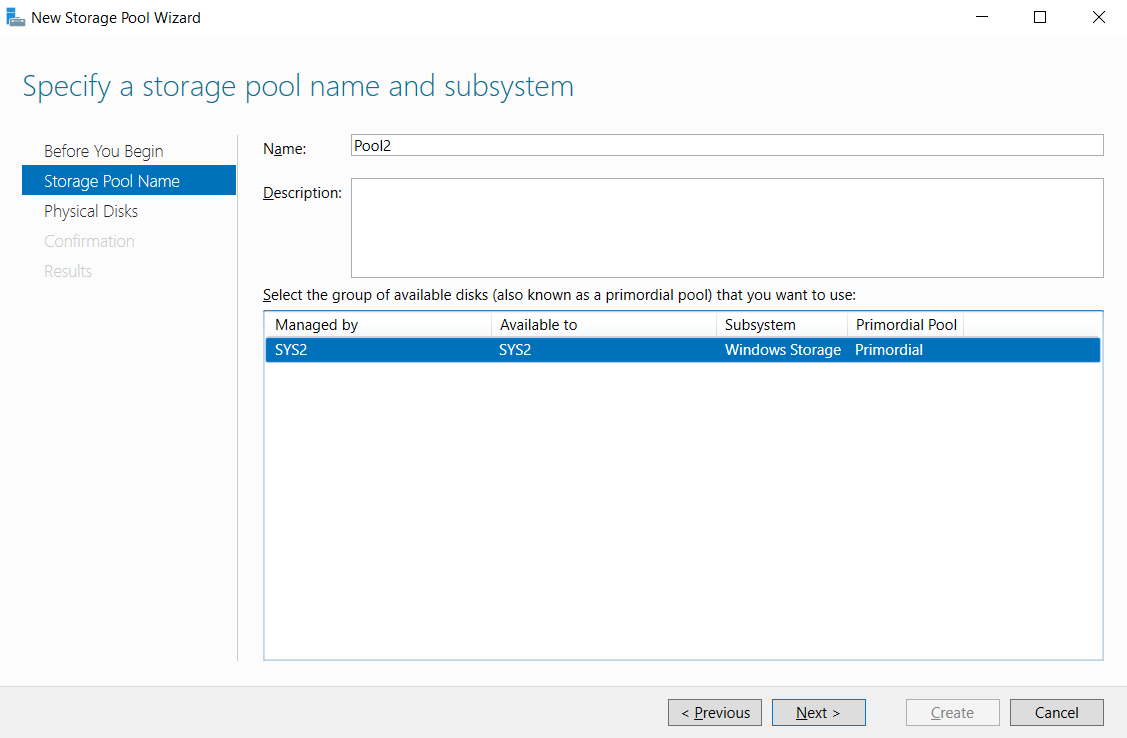

Step 2
Enter Name (Ex: Pool2), click Next. www..in
Step 3

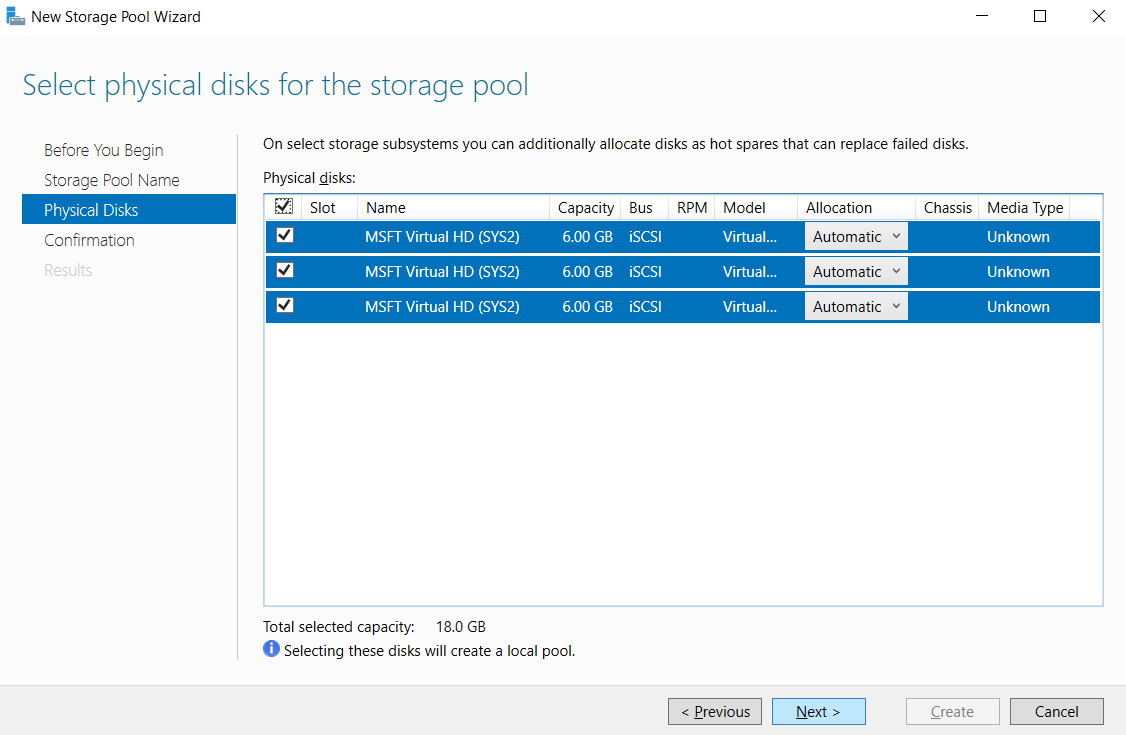

Check the boxes and select the physical disks for the Storage pool, click Next.

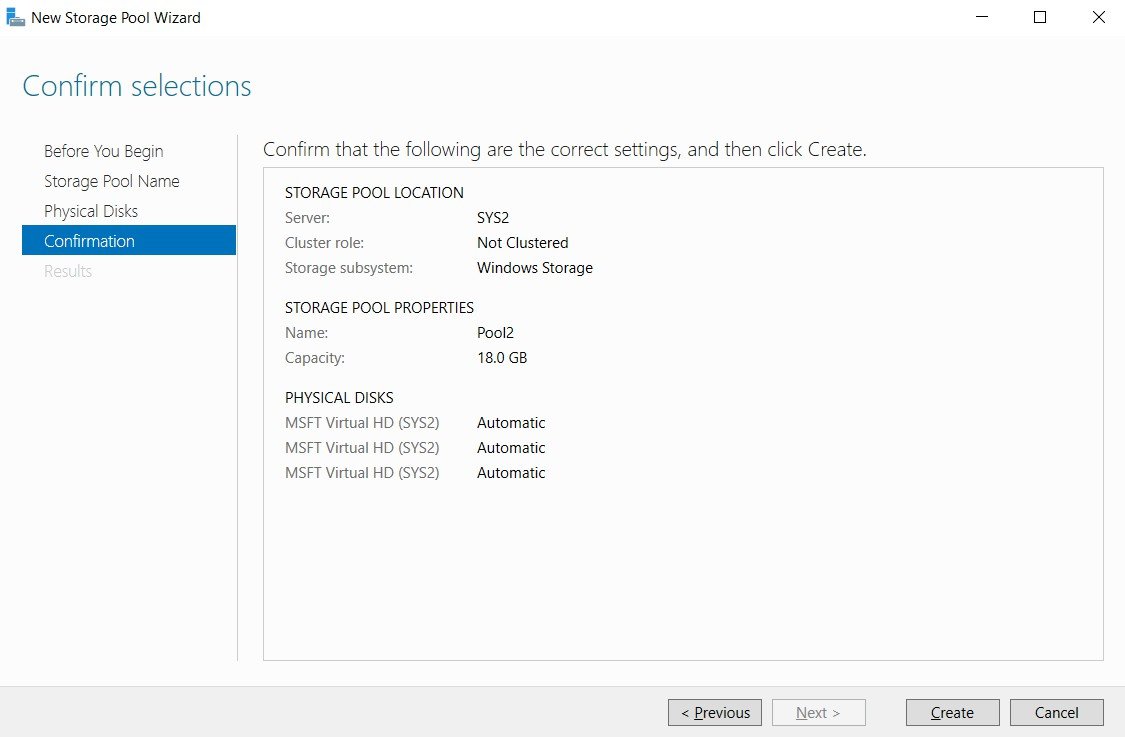

Step 4
Click Create.

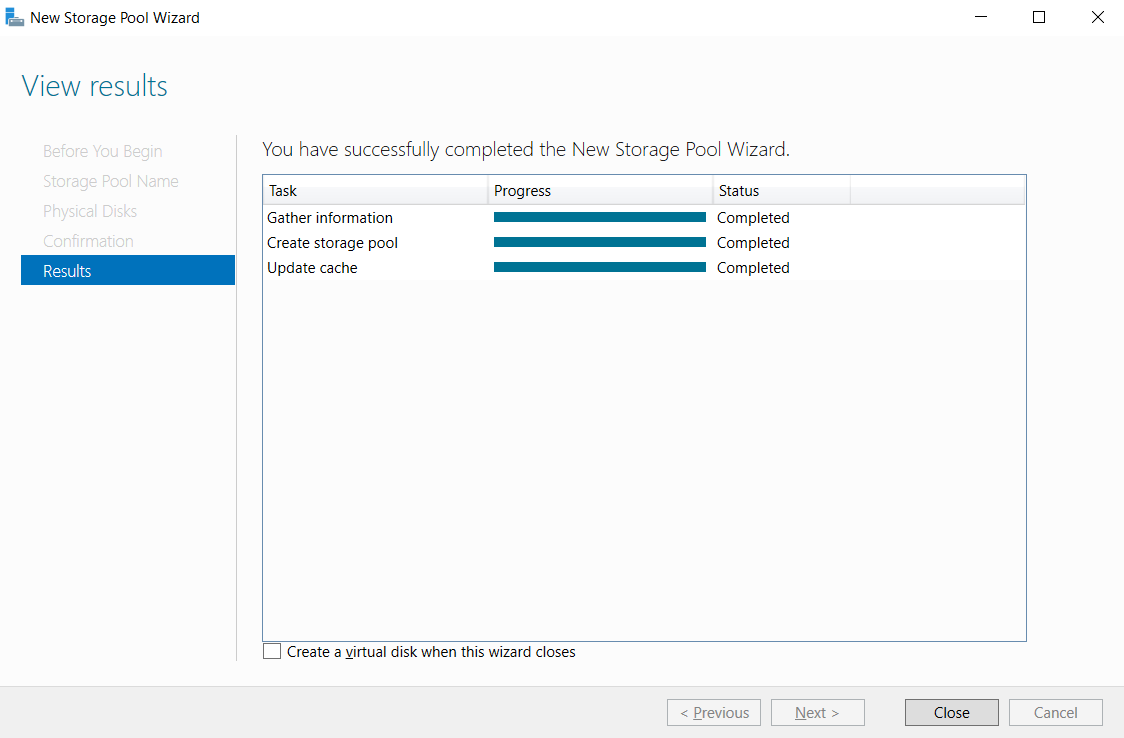

Step 5
Click Close.

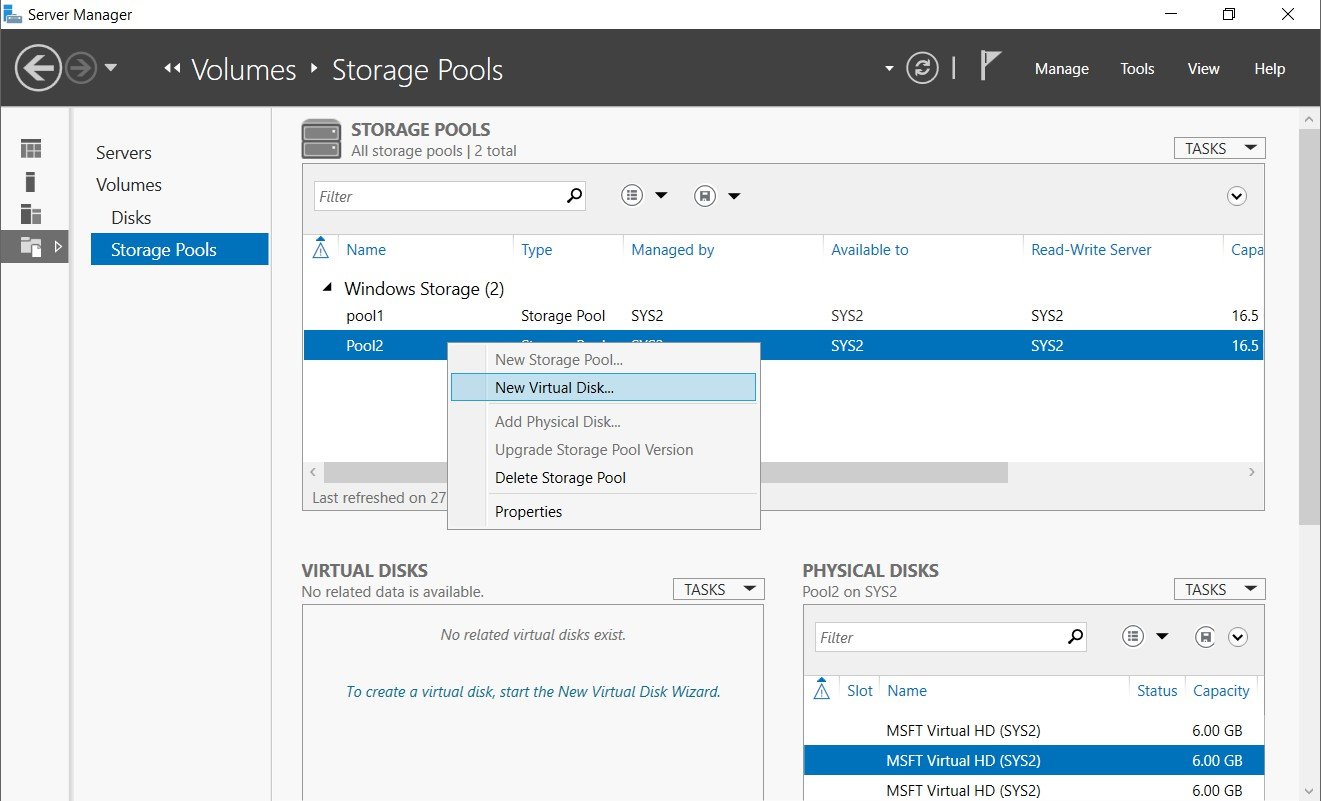

Step 6
In Server Manager, Storage Pools, select Pool2, and click To create a virtual disk, start the New Virtual Disk Wizard.

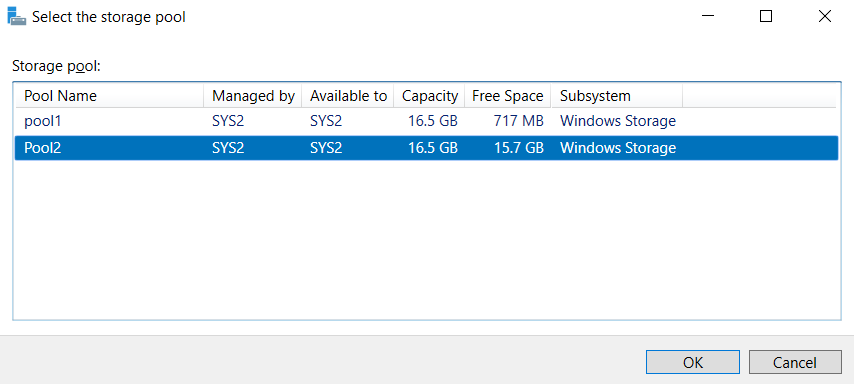

Step 7
Select the storage pool (Ex:Pool2), click Next.

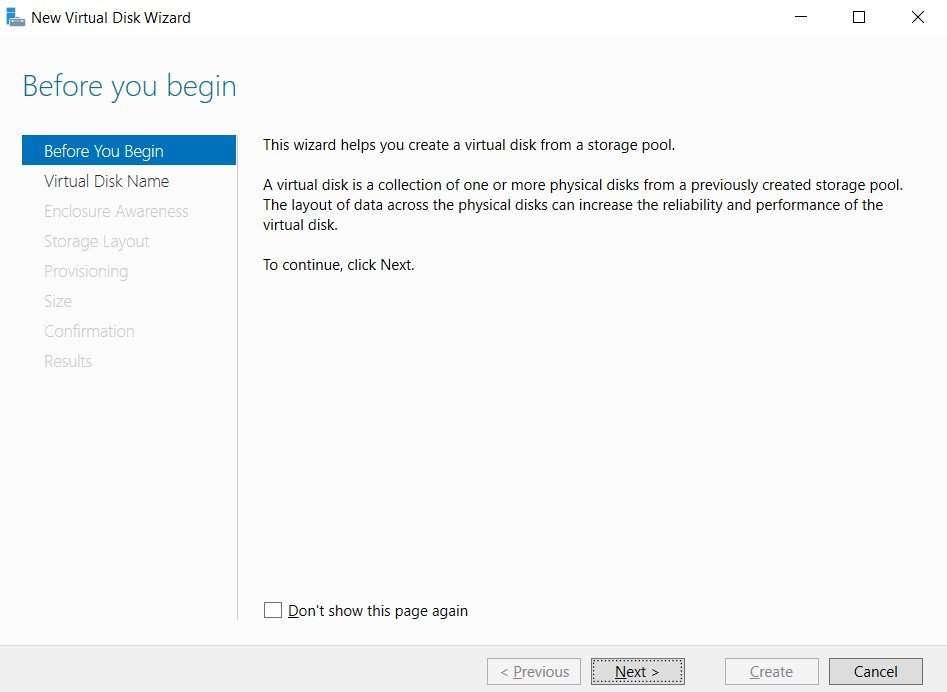

Step 8
In Before you begin page, click Next.

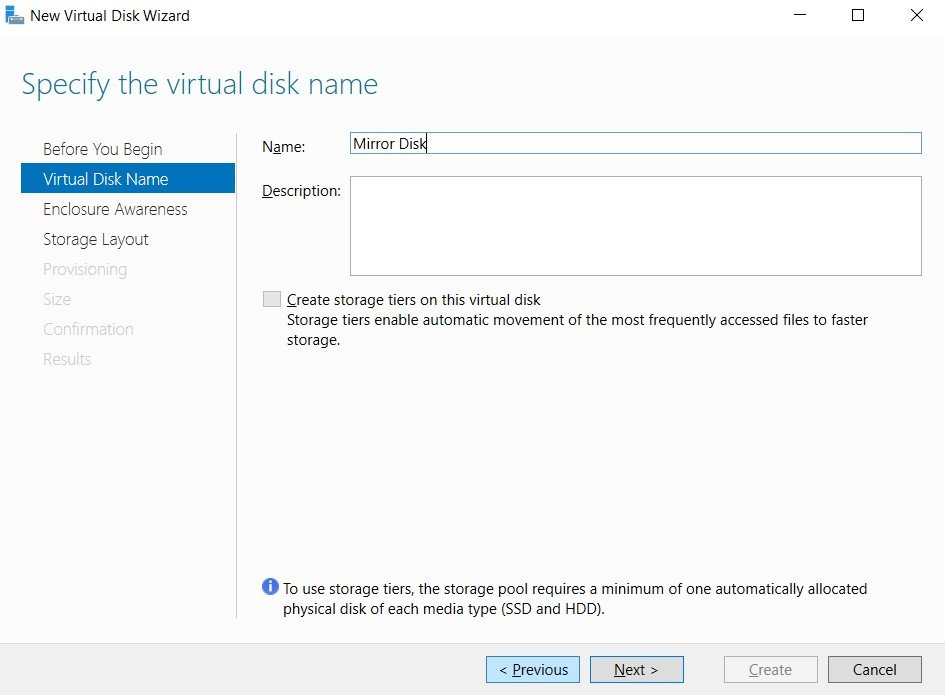

Step 9
Enter Name (Ex: Mirror Disk), click Next.

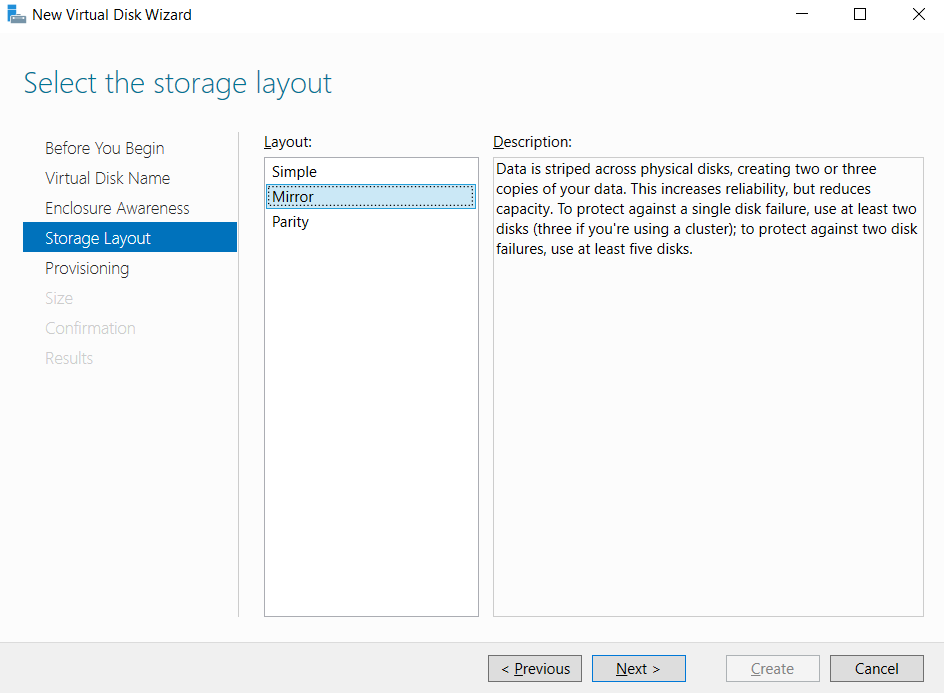

Step 10
Select Mirror, Click Next.
Step 11

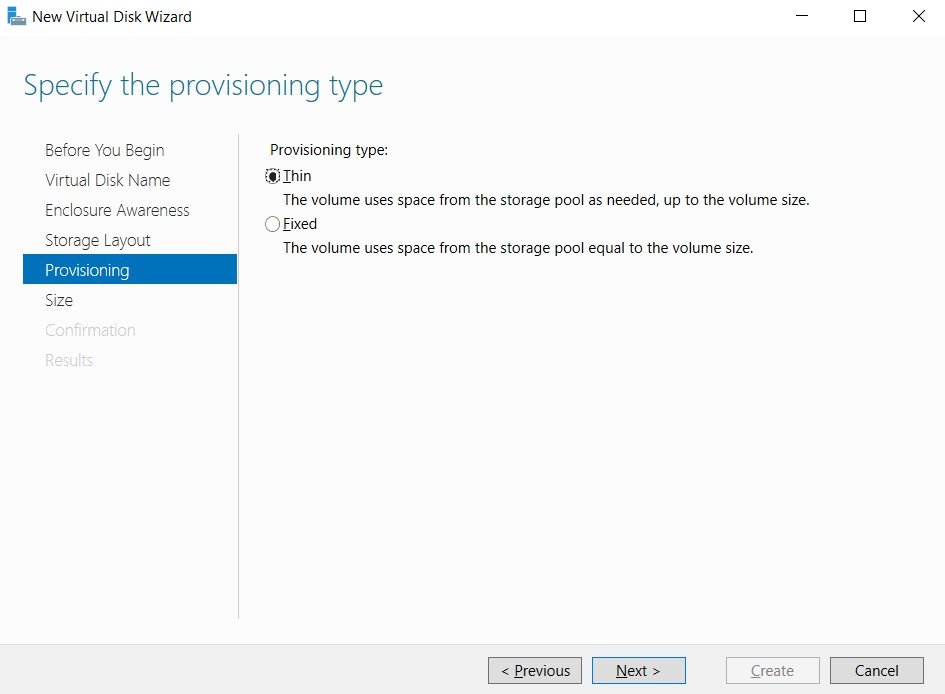

Select Thin or Fixed, Click Next.

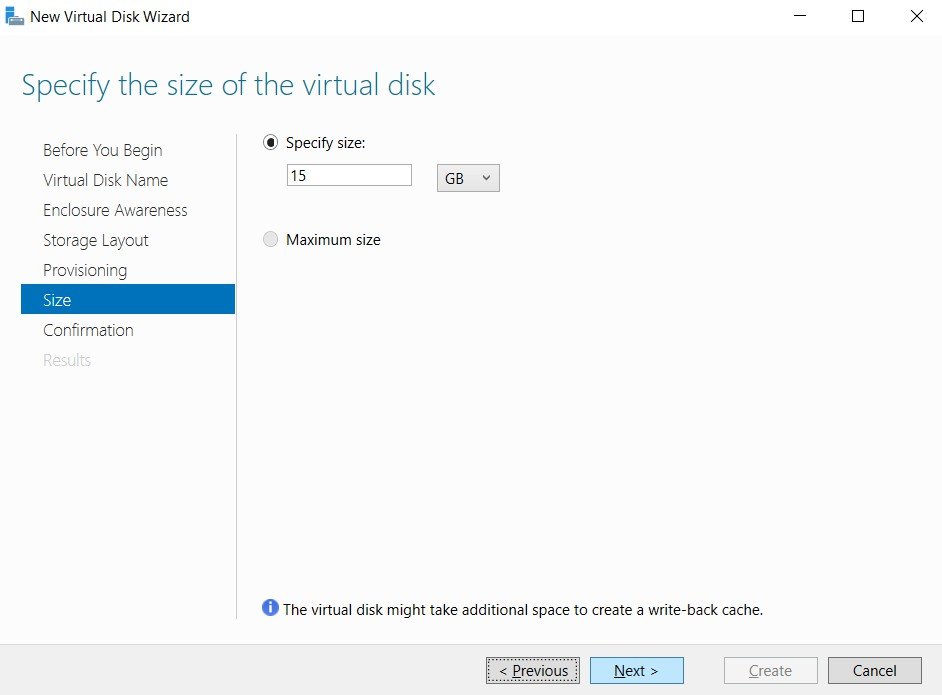

Step 12
Enter the size of the virtual disk, click Next.

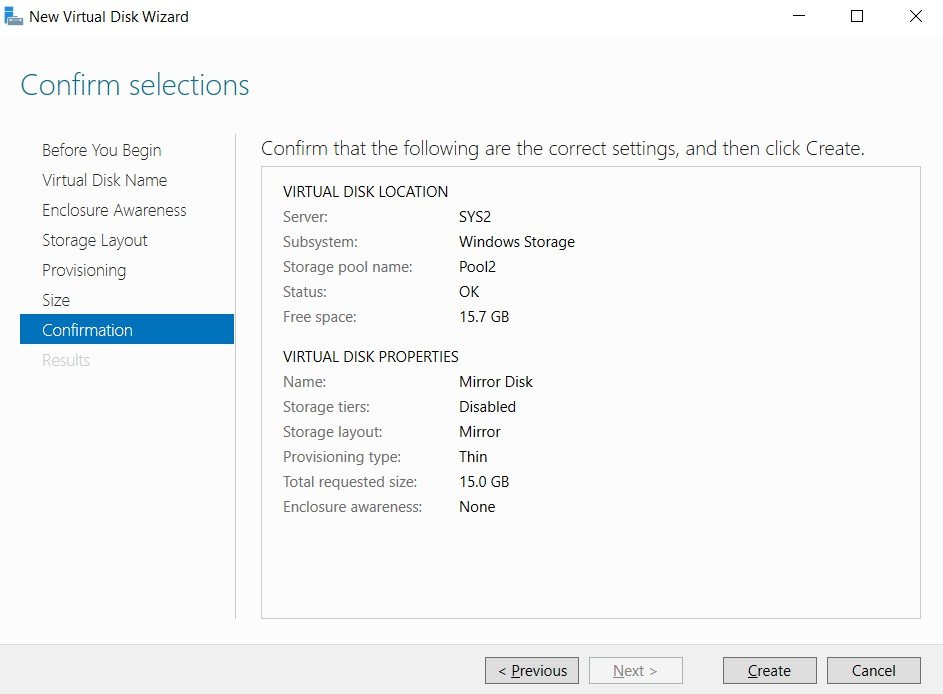

Step 13
Click Create.

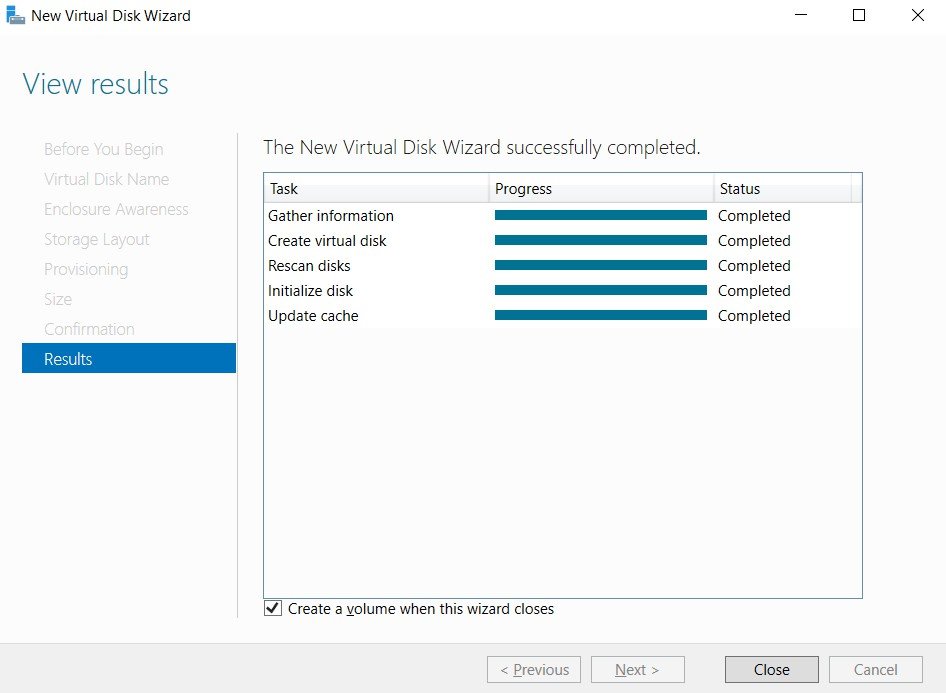

Step 14
Click Close, verify the check box Create a volume when wizard closes.

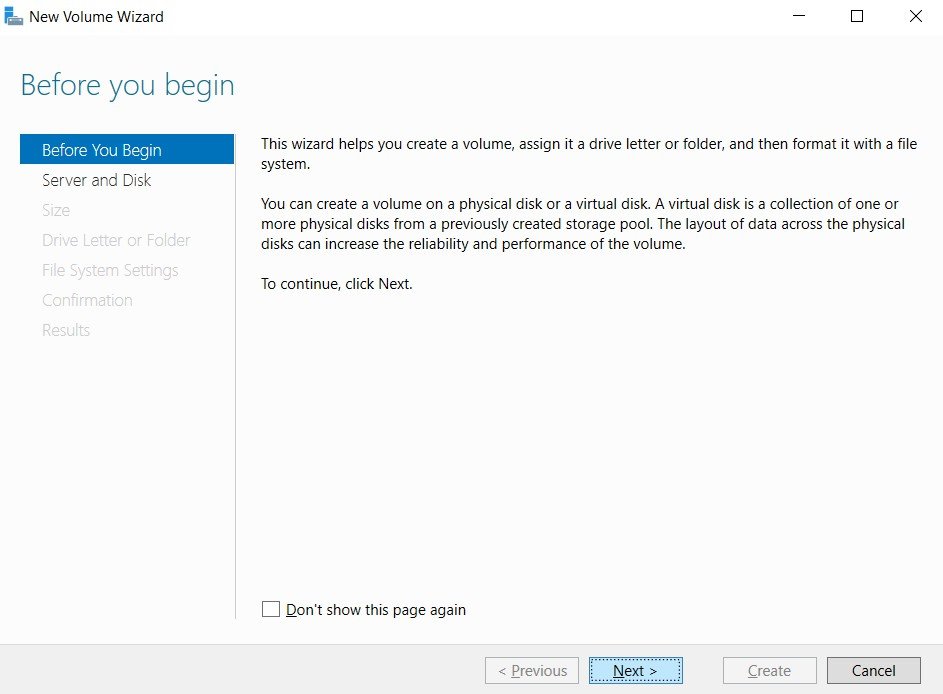

Step 15
In Before you begin page, click Next.

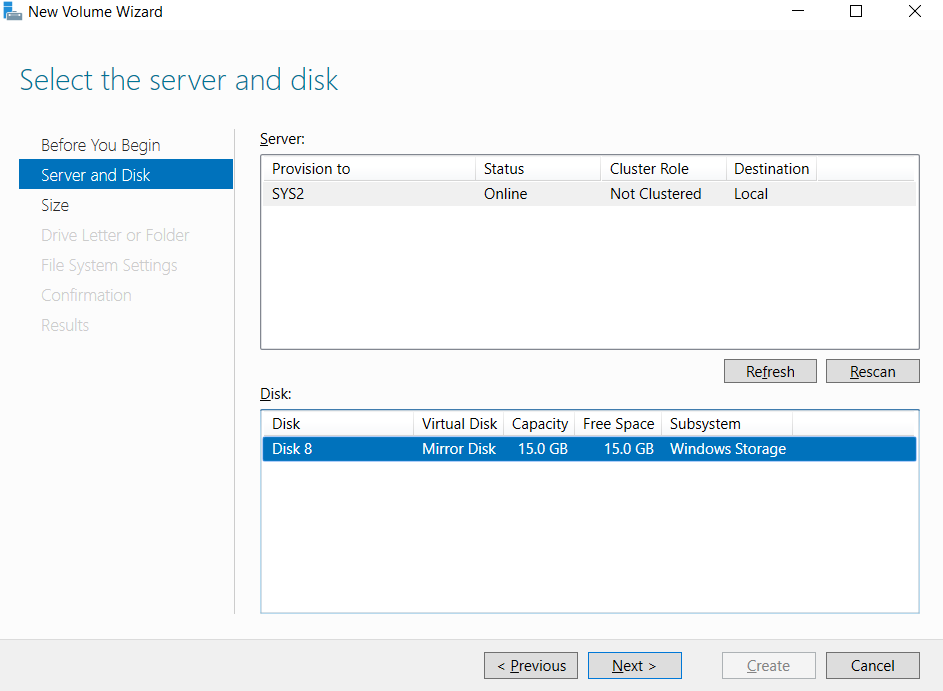

Step 16
Select the Server and disk, Click next.

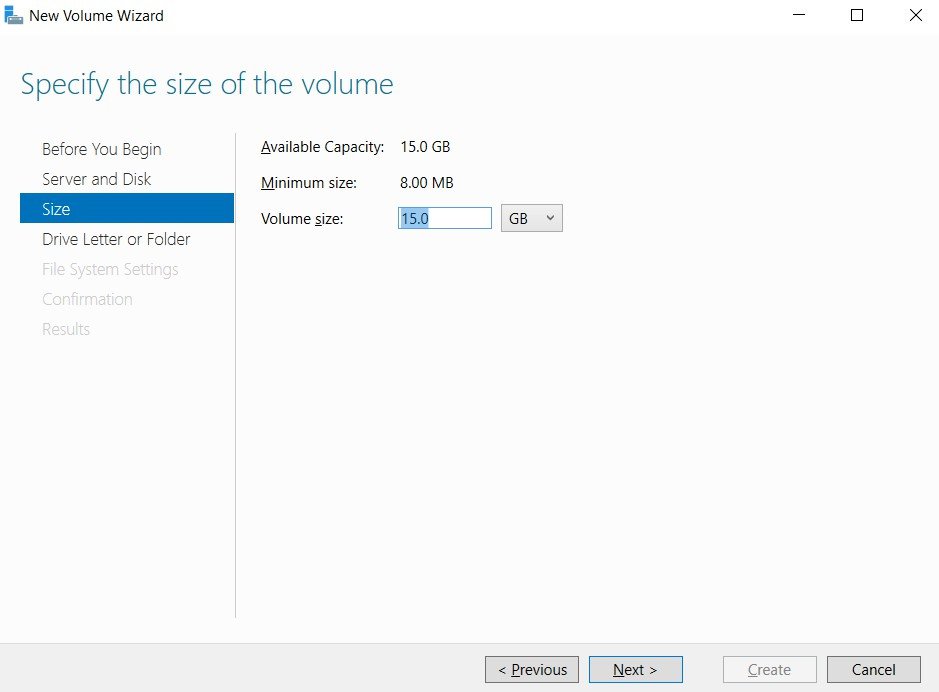

Step 17
Enter the size of the volume, click Next.
Step 18

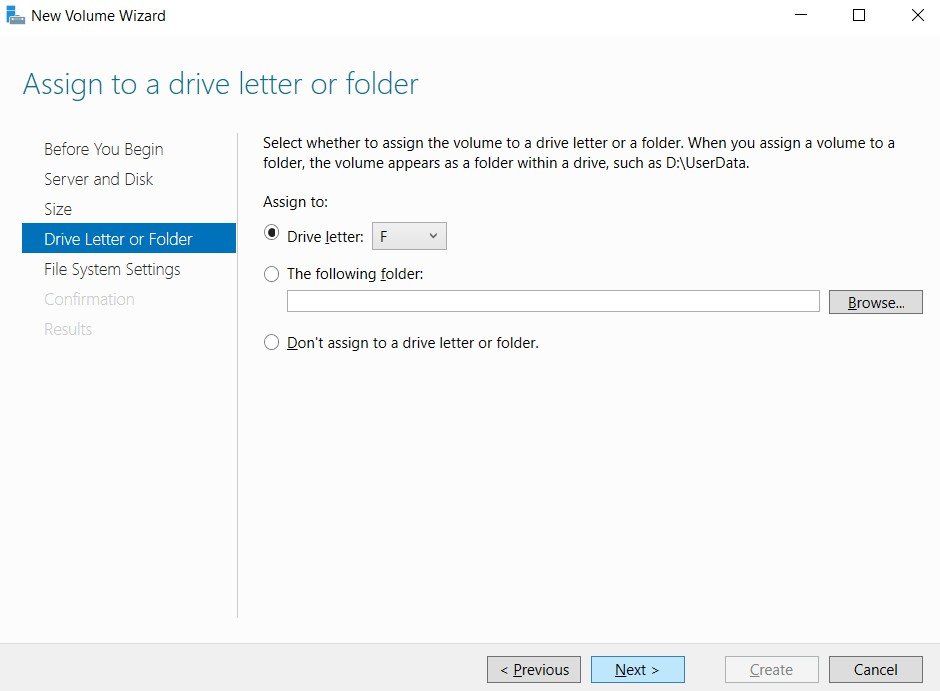

Select the Drive letter, click Next.
Step 19

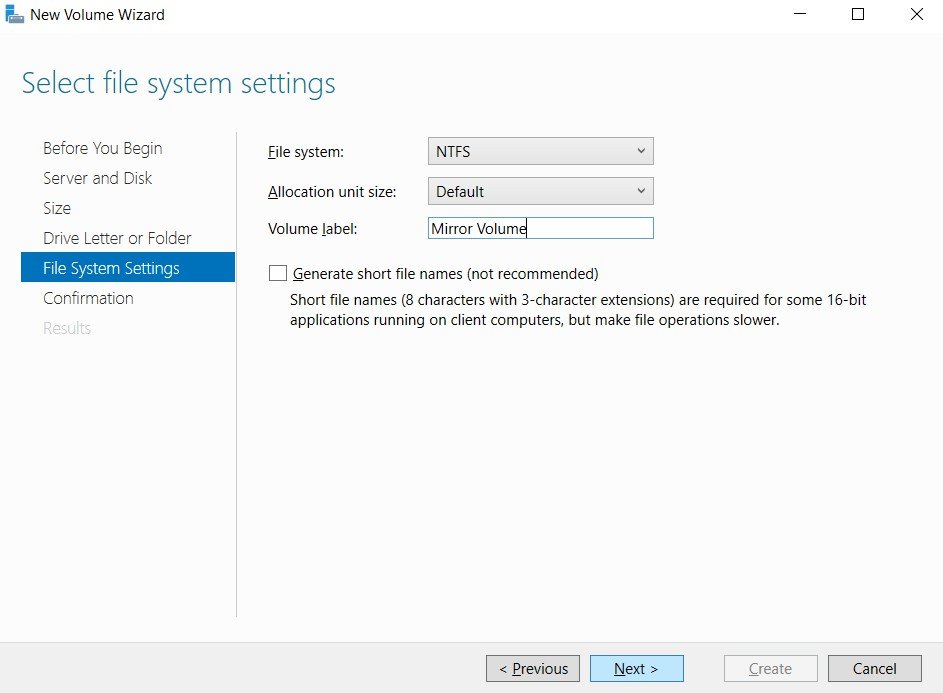

Select the File system, Volume Label , click Next.
Step 20

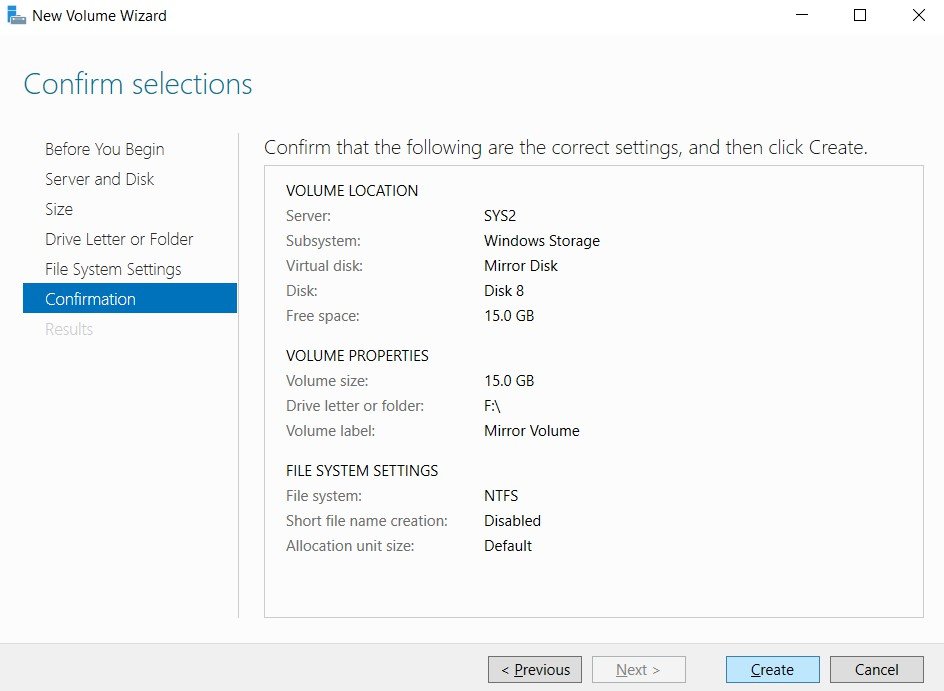

Click Create.
Step 21
Click Close.
Verification

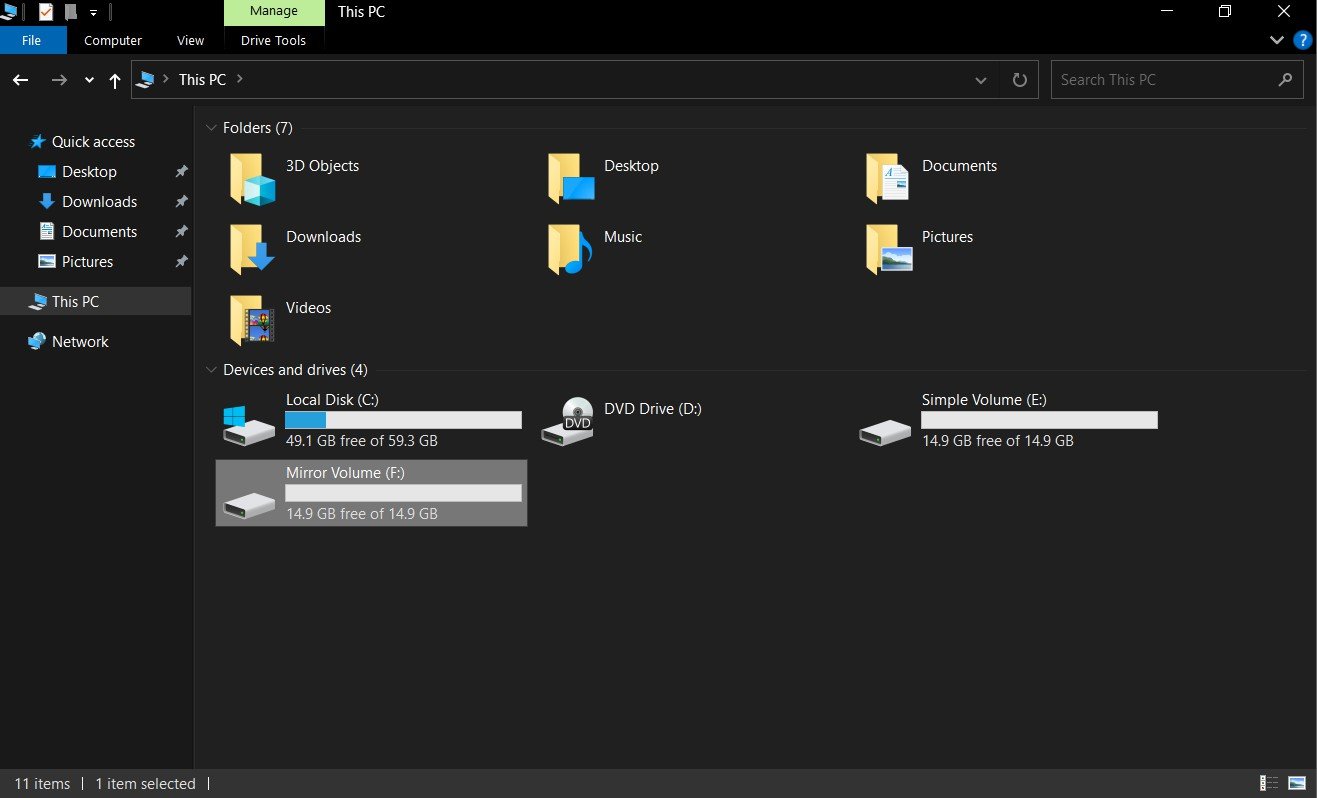

- 2. Go to Start, select Computer Icon and verify for the Mirror volume.
